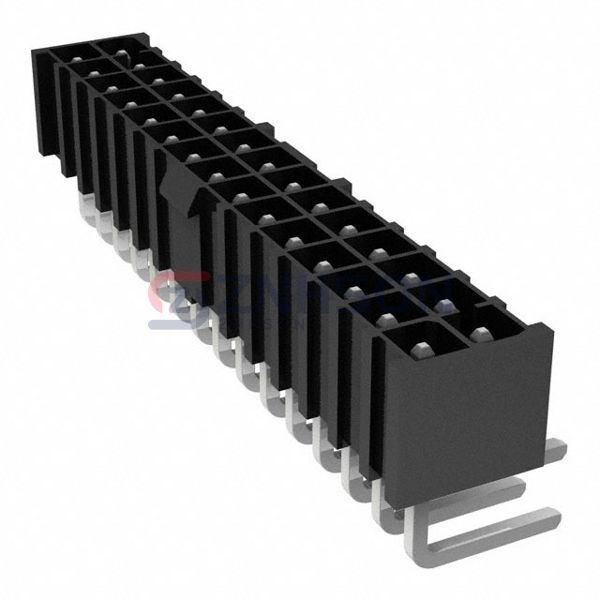

IPBT-115-H1-T-D-RA-K
Samtec Inc.
Samtec Inc.
CONN HEADER R/A 30POS 4.2MM
$9.03
Available to order
Reference Price (USD)
1+
$5.60000
16+
$5.37625
104+
$4.48000
504+
$3.80800
1,000+
$3.24800
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The IPBT-115-H1-T-D-RA-K Samtec Inc. Rectangular Connectors - Headers, Male Pins are the perfect choice for high-performance electronic connections. Designed for durability and efficiency, they support a wide range of applications, from automotive to IoT devices. Experience the Samtec Inc. difference today. Contact us for more details and a customized solution!
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.165" (4.20mm)
- Number of Positions: 30
- Number of Rows: 2
- Row Spacing - Mating: 0.165" (4.20mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Locking Ramp
- Contact Length - Mating: 0.260" (6.60mm)
- Contact Length - Post: 0.147" (3.73mm)
- Overall Contact Length: -
- Insulation Height: 0.424" (10.77mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: Tin
- Contact Material: Copper Alloy
- Insulation Material: Liquid Crystal Polymer (LCP)
- Features: -
- Operating Temperature: -55°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): -
- Voltage Rating: 400VAC, 565VDC
Related Products
TE Connectivity AMP Connectors
9-103801-0-08
EDAC Inc.
140-502-417-011
Samtec Inc.
TSW-128-06-G-D
Samtec Inc.
TMM-125-01-F-D-SM-P-TR
Samtec Inc.
FTS-112-03-L-DV-A-P
Samtec Inc.
TSW-125-23-L-S
Samtec Inc.
FTS-107-04-S-DV-A
Samtec Inc.

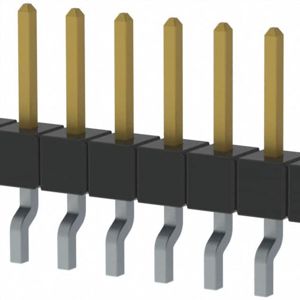

MMT-120-02-L-SH-P
