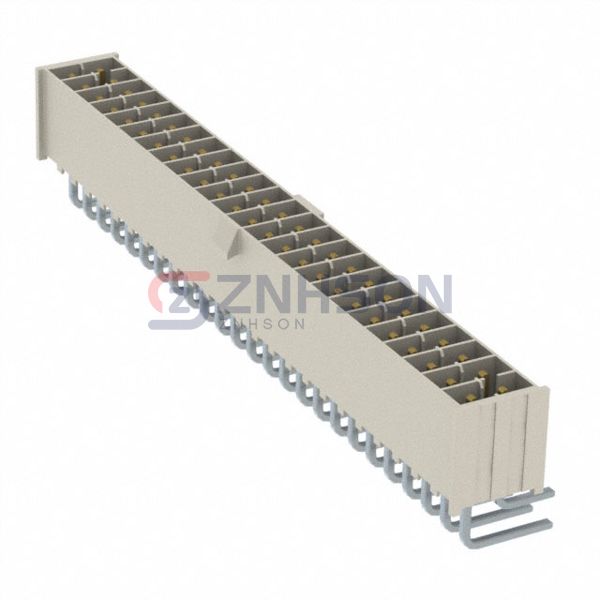

IPL1-125-01-L-D-RA-K
Samtec Inc.
Samtec Inc.
CONN HEADER R/A 50POS 2.54MM
$13.68
Available to order
Reference Price (USD)
1+
$8.17000
10+
$7.81000
100+
$6.56750
500+
$5.50250
1,000+
$4.86350
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The IPL1-125-01-L-D-RA-K Samtec Inc. Rectangular Connectors - Headers, Male Pins deliver precision and reliability for all your connectivity needs. Featuring gold-plated contacts, high-density layouts, and rugged housings, they excel in harsh environments. Perfect for military, automotive, and renewable energy applications. Let us help you find the right connector inquire now!
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 50
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Locking Ramp
- Contact Length - Mating: 0.215" (5.46mm)
- Contact Length - Post: 0.085" (2.16mm)
- Overall Contact Length: -
- Insulation Height: 0.290" (7.37mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 10.0µin (0.25µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Liquid Crystal Polymer (LCP)
- Features: -
- Operating Temperature: -55°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Natural
- Current Rating (Amps): -
- Voltage Rating: 675VAC, 954VDC
Related Products
TE Connectivity AMP Connectors
917780-1
Samtec Inc.
TMM-104-06-G-D
Samtec Inc.
HTSW-130-08-LM-D-RA
Mill-Max Manufacturing Corp.
800-10-059-10-001000
TE Connectivity AMP Connectors
1734261-7
TE Connectivity AMP Connectors
4-175643-2
CNC Tech
52025-03-0100-01
Samtec Inc.
TSW-114-06-G-S
TE Connectivity AMP Connectors

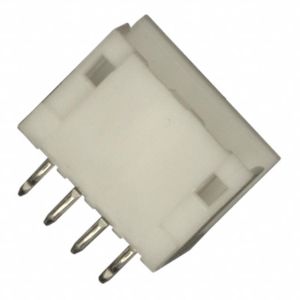

292132-4
