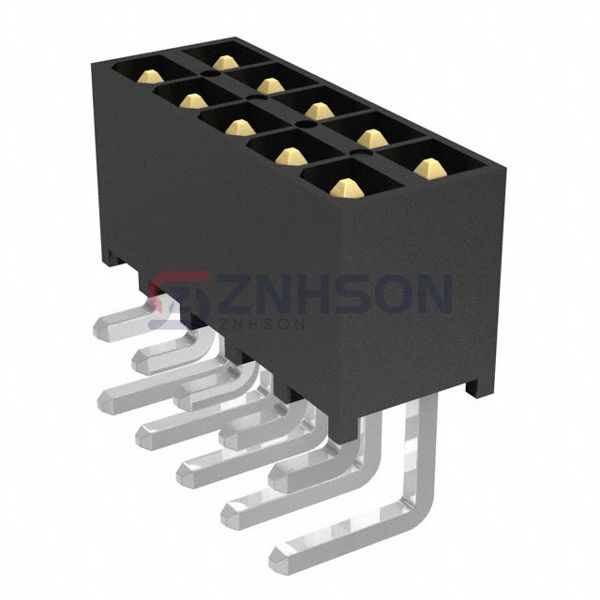

IPT1-105-01-L-D-RA
Samtec Inc.
Samtec Inc.
CONN HEADER R/A 10POS 2.54MM
$3.86
Available to order
Reference Price (USD)
1+
$2.55000
42+
$1.97786
126+
$1.58222
504+
$1.31849
1,008+
$1.16907
5,040+
$1.09875
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The IPT1-105-01-L-D-RA Samtec Inc. Rectangular Connectors - Headers, Male Pins deliver precision and reliability for all your connectivity needs. Featuring gold-plated contacts, high-density layouts, and rugged housings, they excel in harsh environments. Perfect for military, automotive, and renewable energy applications. Let us help you find the right connector inquire now!
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 10
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.155" (3.94mm)
- Contact Length - Post: 0.090" (2.29mm)
- Overall Contact Length: -
- Insulation Height: 0.200" (5.08mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 10.0µin (0.25µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Liquid Crystal Polymer (LCP)
- Features: -
- Operating Temperature: -55°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 2.3A per Contact
- Voltage Rating: 775VAC, 1095VDC
Related Products
Sullins Connector Solutions
PEC18SAAN
Samtec Inc.
TSM-106-04-S-SV-LC
Samtec Inc.
TSM-115-02-S-SH-A
Hirose Electric Co Ltd
DF11G-30DP-2V(50)
Samtec Inc.
TMM-113-01-L-D-SM-P-TR
Samtec Inc.

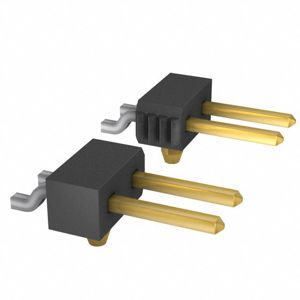

TSM-108-01-L-SH-A
