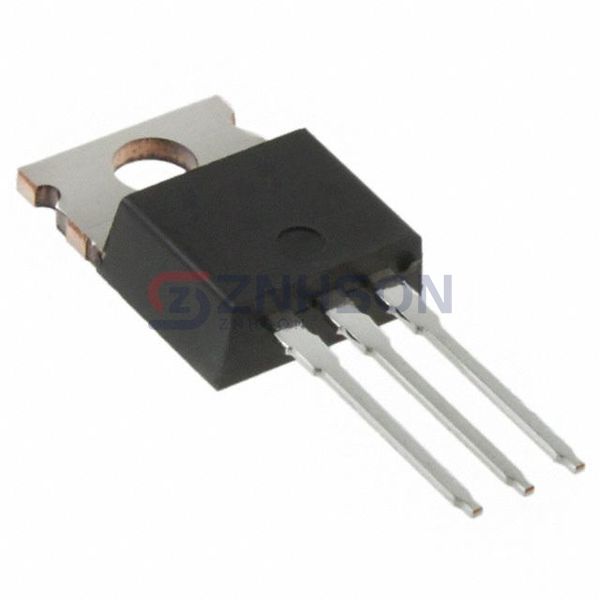

IRF9520PBF
Vishay Siliconix
Vishay Siliconix
MOSFET P-CH 100V 6.8A TO220AB
$1.35
Available to order
Reference Price (USD)
1+
$1.15000
50+
$0.92920
100+
$0.81670
500+
$0.63992
1,000+
$0.51135
2,500+
$0.47921
5,000+
$0.45671
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Enhance your circuit performance with IRF9520PBF, a premium Transistors - FETs, MOSFETs - Single from Vishay Siliconix. As part of the Discrete Semiconductor Products lineup, this MOSFET excels in delivering high-speed switching and low power consumption. Its advanced design reduces heat generation and improves efficiency, suitable for power supplies, motor controls, and LED lighting. Trust IRF9520PBF for consistent quality and long-lasting performance. For bulk orders or custom specifications, reach out to our sales team today!
Specifications
- Product Status: Active
- FET Type: P-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 100 V
- Current - Continuous Drain (Id) @ 25°C: 6.8A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 10V
- Rds On (Max) @ Id, Vgs: 600mOhm @ 4.1A, 10V
- Vgs(th) (Max) @ Id: 4V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 18 nC @ 10 V
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 390 pF @ 25 V
- FET Feature: -
- Power Dissipation (Max): 60W (Tc)
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting Type: Through Hole
- Supplier Device Package: TO-220AB
- Package / Case: TO-220-3
