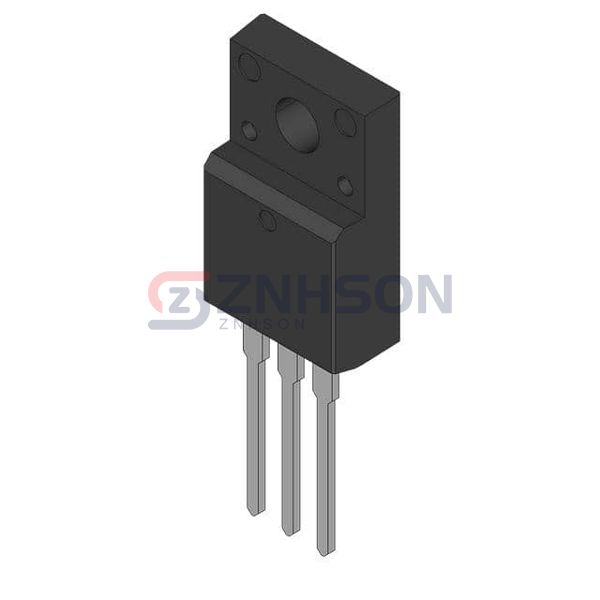

IRLS540A
Fairchild Semiconductor
Fairchild Semiconductor
N-CHANNEL POWER MOSFET
$0.66
Available to order
Reference Price (USD)
1+
$0.66000
500+
$0.6534
1000+
$0.6468
1500+
$0.6402
2000+
$0.6336
2500+
$0.627
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover high-performance IRLS540A from Fairchild Semiconductor, a leading solution in the Discrete Semiconductor Products category. Our Transistors - FETs, MOSFETs - Single are designed for efficiency and reliability, making them ideal for various electronic applications. These components feature low on-resistance, fast switching speeds, and excellent thermal performance, ensuring optimal functionality in power management and amplification circuits. Commonly used in automotive, industrial, and consumer electronics, IRLS540A delivers consistent performance under demanding conditions. Interested in learning more? Contact us today for a detailed quote and technical support!
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 100 V
- Current - Continuous Drain (Id) @ 25°C: 17A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 5V
- Rds On (Max) @ Id, Vgs: 58mOhm @ 8.5A, 5V
- Vgs(th) (Max) @ Id: 2V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 54 nC @ 5 V
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 1580 pF @ 25 V
- FET Feature: -
- Power Dissipation (Max): 44W (Tc)
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting Type: Through Hole
- Supplier Device Package: TO-220F-3
- Package / Case: TO-220-3 Full Pack
