IS314P

Isocom Components 2004 LTD

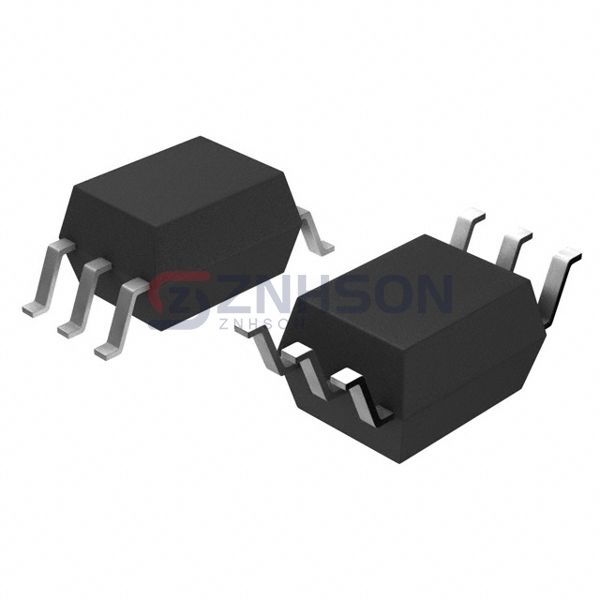

IS314P Preview
Isocom Components 2004 LTD
6 PIN IGBT GATE DRIVEWIDE BODY H
$1.95
Available to order
Reference Price (USD)
1,000+
$0.68544
2,000+
$0.65117
5,000+
$0.63648
10,000+
$0.61200
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram

Specifications

  • Product Status: Active
  • Technology: Optical Coupling
  • Number of Channels: 1
  • Voltage - Isolation: 5000Vrms
  • Common Mode Transient Immunity (Min): 20kV/µs
  • Propagation Delay tpLH / tpHL (Max): 200ns, 200ns
  • Pulse Width Distortion (Max): 70ns
  • Rise / Fall Time (Typ): 35ns, 35ns
  • Current - Output High, Low: 800mA, 800mA
  • Current - Peak Output: 1A
  • Voltage - Forward (Vf) (Typ): 1.37V
  • Current - DC Forward (If) (Max): 25 mA
  • Voltage - Output Supply: 10V ~ 30V
  • Operating Temperature: -40°C ~ 105°C
  • Mounting Type: Surface Mount
  • Package / Case: 6-SOIC (0.268", 6.80mm Width)
  • Supplier Device Package: 6-SO Stretched
  • Approval Agency: -
