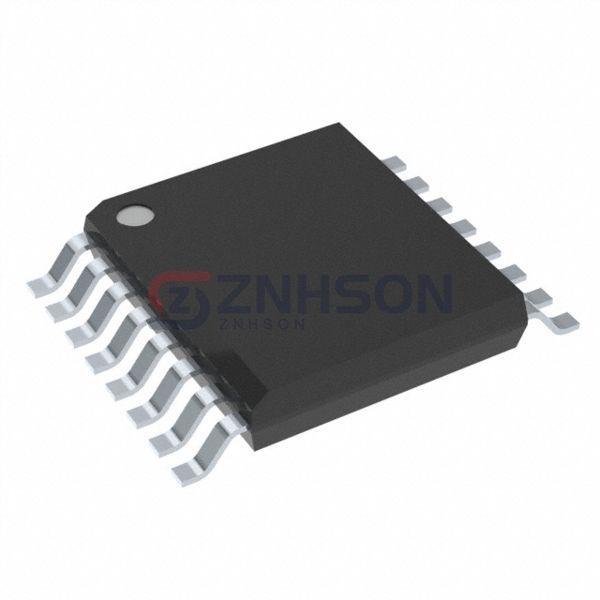

ISO7763DBQ
Texas Instruments
Texas Instruments
DGTL ISO 3000VRMS 6CH GP 16SSOP
$4.99
Available to order
Reference Price (USD)
1+
$4.99000
500+
$4.9401
1000+
$4.8902
1500+
$4.8403
2000+
$4.7904
2500+
$4.7405
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Enhance your circuit protection with Texas Instruments ISO7763DBQ Digital Isolators, delivering superior electrical isolation and signal accuracy. Featuring high common-mode transient immunity, low power dissipation, and multi-channel options, these isolators are ideal for data acquisition, PLCs, and instrumentation. Texas Instruments ISO7763DBQ stands for quality and innovation. Want to learn more? Submit your inquiry and we ll respond promptly with the best options!
Specifications
- Product Status: Active
- Technology: Capacitive Coupling
- Type: General Purpose
- Isolated Power: No
- Number of Channels: 6
- Inputs - Side 1/Side 2: 3/3
- Channel Type: Unidirectional
- Voltage - Isolation: 3000Vrms
- Common Mode Transient Immunity (Min): 85kV/µs
- Data Rate: 100Mbps
- Propagation Delay tpLH / tpHL (Max): 16ns, 16ns
- Pulse Width Distortion (Max): 4.9ns
- Rise / Fall Time (Typ): 1.1ns, 1.4ns
- Voltage - Supply: 2.25V ~ 5.5V
- Operating Temperature: -55°C ~ 125°C
- Mounting Type: Surface Mount
- Package / Case: 16-SSOP (0.154", 3.90mm Width)
- Supplier Device Package: 16-SSOP
