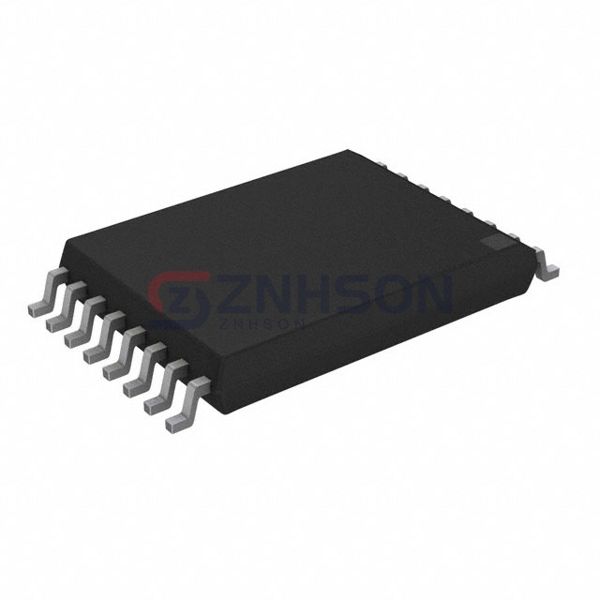

ISO7842DWWR
Texas Instruments
Texas Instruments
DGTL ISO 5700VRMS 4CH GP 16SOIC
$12.30
Available to order
Reference Price (USD)
1,000+
$6.63390
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Enhance your circuit protection with Texas Instruments ISO7842DWWR Digital Isolators, delivering superior electrical isolation and signal accuracy. Featuring high common-mode transient immunity, low power dissipation, and multi-channel options, these isolators are ideal for data acquisition, PLCs, and instrumentation. Texas Instruments ISO7842DWWR stands for quality and innovation. Want to learn more? Submit your inquiry and we ll respond promptly with the best options!
Specifications
- Product Status: Active
- Technology: Capacitive Coupling
- Type: General Purpose
- Isolated Power: No
- Number of Channels: 4
- Inputs - Side 1/Side 2: 2/2
- Channel Type: Unidirectional
- Voltage - Isolation: 5700Vrms
- Common Mode Transient Immunity (Min): 100kV/µs
- Data Rate: 100Mbps
- Propagation Delay tpLH / tpHL (Max): 16ns, 16ns
- Pulse Width Distortion (Max): 4.1ns
- Rise / Fall Time (Typ): 1.7ns, 1.9ns
- Voltage - Supply: 2.25V ~ 5.5V
- Operating Temperature: -55°C ~ 125°C
- Mounting Type: Surface Mount
- Package / Case: 16-SOIC (0.551", 14.00mm Width)
- Supplier Device Package: 16-SOIC
