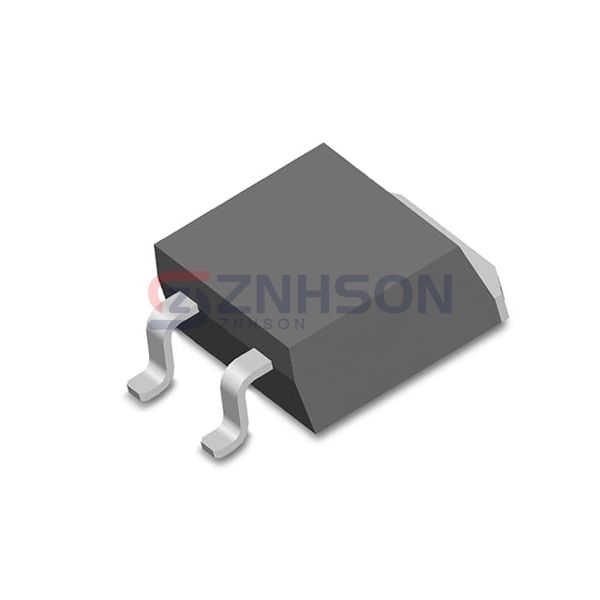

IXYA20N120B4HV
IXYS
IXYS
IGBT 1200V 20A GENX4 XPT TO263D2
$10.61
Available to order
Reference Price (USD)
1+
$10.61000
500+
$10.5039
1000+
$10.3978
1500+
$10.2917
2000+
$10.1856
2500+
$10.0795
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Maximize energy efficiency with IXYA20N120B4HV Single IGBTs by IXYS, a trusted name in discrete semiconductors. Suitable for solar inverters, motor controllers, and more, these transistors feature low conduction loss and high switching frequency. Their robust design ensures long-term performance even in harsh environments. Choose IXYA20N120B4HV for your next project and experience the IXYS difference. Submit your inquiry today for expert assistance!
Specifications
- Product Status: Active
- IGBT Type: PT
- Voltage - Collector Emitter Breakdown (Max): 1200 V
- Current - Collector (Ic) (Max): 76 A
- Current - Collector Pulsed (Icm): 130 A
- Vce(on) (Max) @ Vge, Ic: 2.1V @ 15V, 20A
- Power - Max: 375 W
- Switching Energy: 3.9mJ (on), 1.6mJ (off)
- Input Type: Standard
- Gate Charge: 44 nC
- Td (on/off) @ 25°C: 15ns/200ns
- Test Condition: 960mV, 20A, 10Ohm, 15V
- Reverse Recovery Time (trr): 47 ns
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
- Supplier Device Package: TO-263HV
