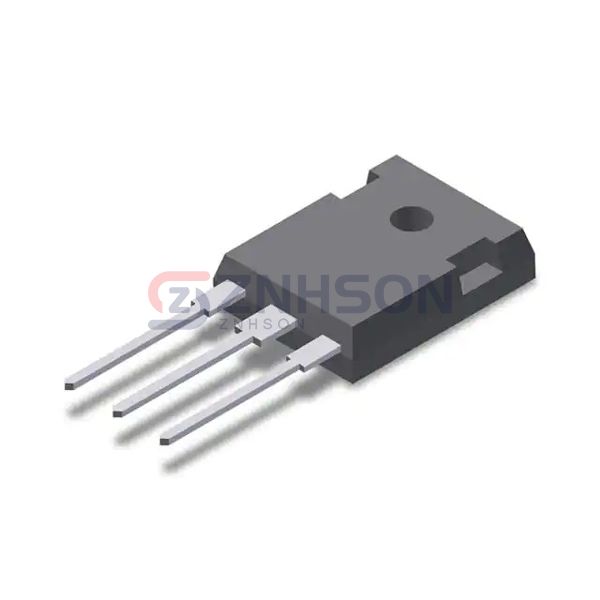

IXYH120N65A5
IXYS
IXYS
IGBT 650V 120A X5 XPT TO-247
$11.89
Available to order
Reference Price (USD)
1+
$11.89000
500+
$11.7711
1000+
$11.6522
1500+
$11.5333
2000+
$11.4144
2500+
$11.2955
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The IXYH120N65A5 Single IGBT by IXYS sets the standard for power semiconductor excellence. Designed for applications like electric vehicles and industrial machinery, it offers high current density and minimal thermal resistance. Key benefits include easy integration, superior durability, and compliance with international certifications. Partner with IXYS for cutting-edge solutions tailored to your needs. Contact us now to discuss specifications and delivery options!
Specifications
- Product Status: Active
- IGBT Type: PT
- Voltage - Collector Emitter Breakdown (Max): 650 V
- Current - Collector (Ic) (Max): 290 A
- Current - Collector Pulsed (Icm): 790 A
- Vce(on) (Max) @ Vge, Ic: 1.35V @ 15V, 75A
- Power - Max: 830 W
- Switching Energy: 1.25mJ (on), 3.2mJ (off)
- Input Type: Standard
- Gate Charge: 314 nC
- Td (on/off) @ 25°C: 45ns/370ns
- Test Condition: 400V, 60A, 3Ohm, 15V
- Reverse Recovery Time (trr): -
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting Type: Through Hole
- Package / Case: TO-247-3
- Supplier Device Package: TO-247 (IXTH)
