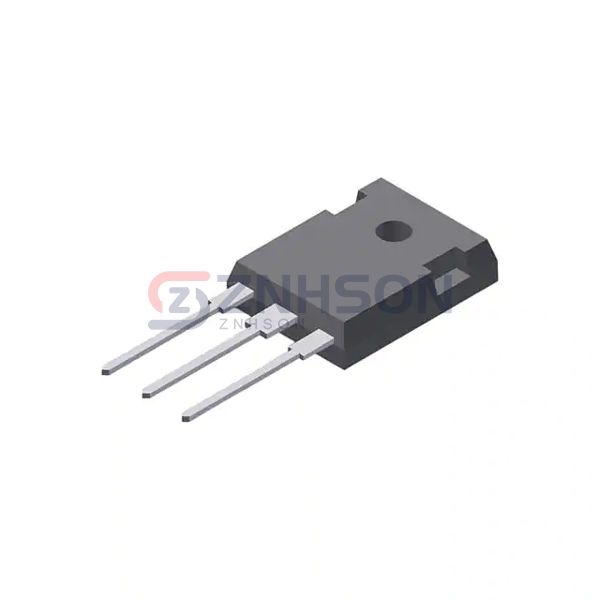

IXYH55N120A4
IXYS
IXYS
IGBT GENX4 1200V 55A TO247
$12.50
Available to order
Reference Price (USD)
1+
$12.50000
500+
$12.375
1000+
$12.25
1500+
$12.125
2000+
$12
2500+
$11.875
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The IXYH55N120A4 Single IGBT from IXYS delivers unmatched performance in power conversion and control. Ideal for UPS systems, induction heating, and industrial automation, this transistor combines high efficiency with rugged reliability. Features such as short-circuit protection and low EMI make it a standout choice. IXYS's commitment to innovation ensures IXYH55N120A4 meets the demands of modern electronics. Get in touch for bulk orders and customization options!
Specifications
- Product Status: Active
- IGBT Type: PT
- Voltage - Collector Emitter Breakdown (Max): 1200 V
- Current - Collector (Ic) (Max): 175 A
- Current - Collector Pulsed (Icm): 350 A
- Vce(on) (Max) @ Vge, Ic: 1.8V @ 15V, 55A
- Power - Max: 650 W
- Switching Energy: 2.3mJ (on), 5.3mJ (off)
- Input Type: Standard
- Gate Charge: 110 nC
- Td (on/off) @ 25°C: 23ns/300ns
- Test Condition: 600V, 40A, 5Ohm, 15V
- Reverse Recovery Time (trr): 35 ns
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting Type: Through Hole
- Package / Case: TO-247-3
- Supplier Device Package: TO-247 (IXTH)
