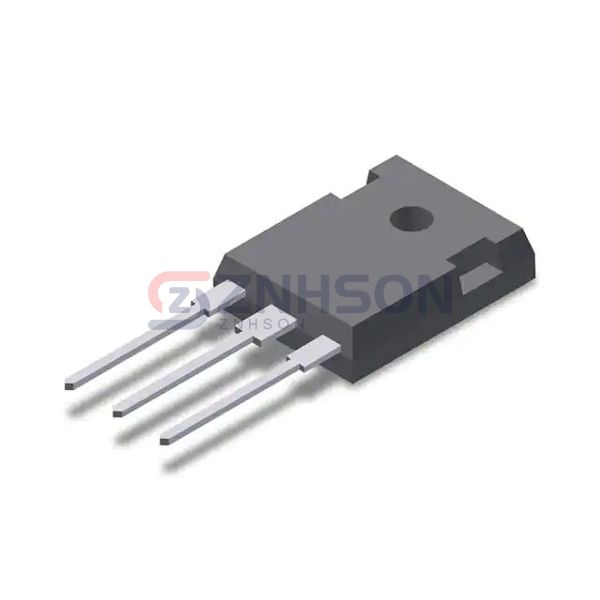

IXYH55N120C4
IXYS
IXYS
IGBT 1200V 55A GEN4 XPT TO247
$8.88
Available to order
Reference Price (USD)
1+
$8.88000
500+
$8.7912
1000+
$8.7024
1500+
$8.6136
2000+
$8.5248
2500+
$8.436
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The IXYH55N120C4 Single IGBT from IXYS redefines reliability in power electronics. Tailored for renewable energy, telecom, and defense applications, it offers ultra-low switching losses and high-frequency operation. With anti-parallel diodes and short-circuit ratings, it s built for safety and performance. IXYS stands behind every IXYH55N120C4 with unmatched customer service. Start your order process by contacting our sales team today!
Specifications
- Product Status: Active
- IGBT Type: -
- Voltage - Collector Emitter Breakdown (Max): 1200 V
- Current - Collector (Ic) (Max): 140 A
- Current - Collector Pulsed (Icm): 290 A
- Vce(on) (Max) @ Vge, Ic: 2.5V @ 15V, 55A
- Power - Max: 650 W
- Switching Energy: 3.5mJ (on), 1.34mJ (off)
- Input Type: Standard
- Gate Charge: 114 nC
- Td (on/off) @ 25°C: 20ns/180ns
- Test Condition: 600V, 40A, 5Ohm, 15V
- Reverse Recovery Time (trr): 50 ns
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting Type: Through Hole
- Package / Case: TO-247-3
- Supplier Device Package: TO-247 (IXTH)
