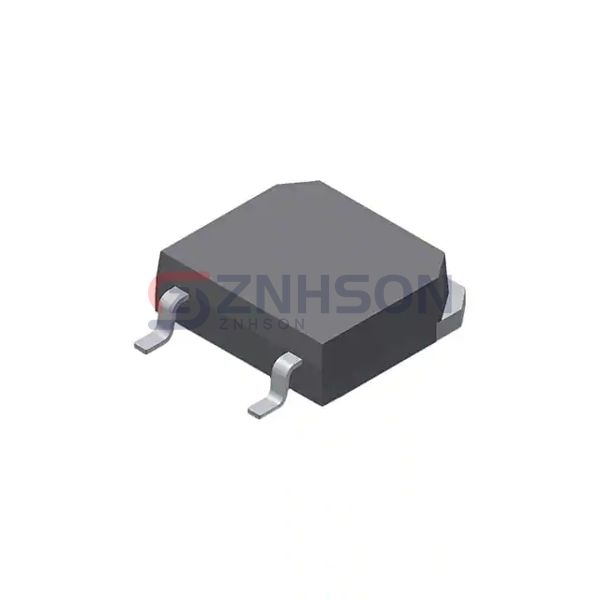

IXYT55N120A4HV
IXYS
IXYS
IGBT GENX4 1200V 55A TO268HV
$12.38
Available to order
Reference Price (USD)
1+
$12.38000
500+
$12.2562
1000+
$12.1324
1500+
$12.0086
2000+
$11.8848
2500+
$11.761
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The IXYT55N120A4HV Single IGBT by IXYS is a game-changer for energy-efficient systems. Ideal for HVAC, robotics, and power distribution, it boasts fast turn-off times and low gate drive requirements. Its advanced technology reduces energy waste and improves system longevity. Trust IXYS for premium-quality transistors backed by exceptional support. Request a sample or quote now to start your next innovation!
Specifications
- Product Status: Active
- IGBT Type: PT
- Voltage - Collector Emitter Breakdown (Max): 1200 V
- Current - Collector (Ic) (Max): 175 A
- Current - Collector Pulsed (Icm): 350 A
- Vce(on) (Max) @ Vge, Ic: 1.8V @ 15V, 55A
- Power - Max: 650 W
- Switching Energy: 2.3mJ (on), 5.3mJ (off)
- Input Type: Standard
- Gate Charge: 110 nC
- Td (on/off) @ 25°C: 23ns/300ns
- Test Condition: 600V, 40A, 5Ohm, 15V
- Reverse Recovery Time (trr): 35 ns
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: TO-268-3, D³Pak (2 Leads + Tab), TO-268AA
- Supplier Device Package: TO-268HV (IXYT)
