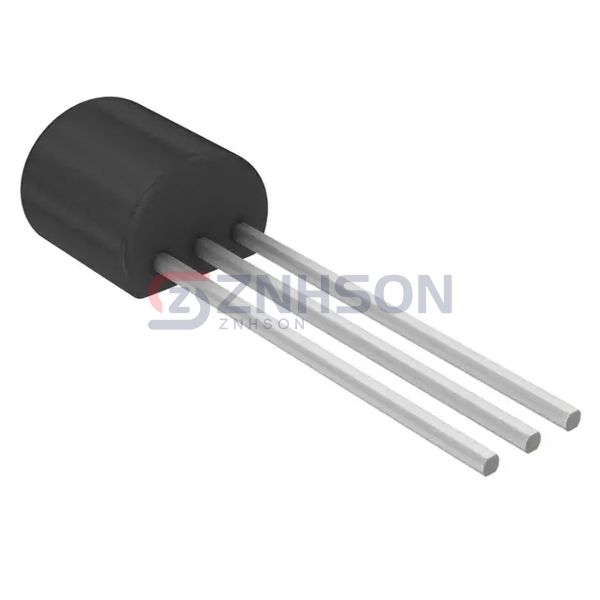

J109
onsemi
onsemi
JFET N-CH 25V 625MW TO92
$0.55
Available to order
Reference Price (USD)
1+
$0.48000
10+
$0.40800
100+
$0.30820
500+
$0.22816
1,000+
$0.17816
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The J109 series represents onsemi's commitment to excellence in JFET technology, offering depletion-mode transistors with industry-leading Yfs stability. Designed for long-term reliability in telecom filters and voltage-controlled resistors, these devices maintain parameters within 5% over 10,000 hours. Features include gold-bonded leads and hermetically sealed packages for aerospace applications. Download the reliability report or request cross-reference assistance our technical team provides full lifecycle support.
Specifications
- Product Status: Active
- FET Type: N-Channel
- Voltage - Breakdown (V(BR)GSS): 25 V
- Drain to Source Voltage (Vdss): -
- Current - Drain (Idss) @ Vds (Vgs=0): 40 mA @ 15 V
- Current Drain (Id) - Max: -
- Voltage - Cutoff (VGS off) @ Id: 2 V @ 10 nA
- Input Capacitance (Ciss) (Max) @ Vds: -
- Resistance - RDS(On): 12 Ohms
- Power - Max: 625 mW
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Through Hole
- Package / Case: TO-226-3, TO-92-3 (TO-226AA)
- Supplier Device Package: TO-92-3
