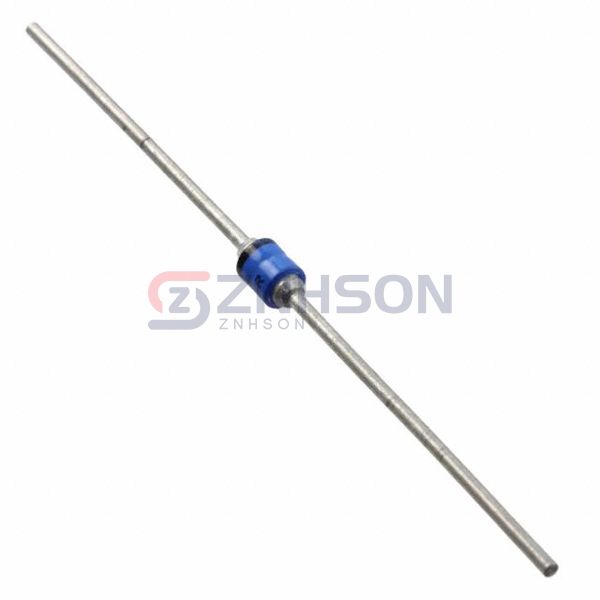

JANS1N5809
Microchip Technology
Microchip Technology
DIODE GEN PURP 100V 3A AXIAL
$47.18
Available to order
Reference Price (USD)
1+
$53.47000
10+
$50.32000
100+
$44.97350
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your circuitry with Microchip Technology's JANS1N5809 Single Rectifier Diodes, tailored for seamless integration and high reliability. These diodes excel in applications such as voltage clamping, freewheeling, and reverse polarity protection. With features like high surge withstand capacity and low thermal resistance, they are a must-have for any electronics engineer. Microchip Technology guarantees top-tier quality and performance. Ready to take the next step? Reach out for a detailed consultation!
Specifications
- Product Status: Active
- Diode Type: Standard
- Voltage - DC Reverse (Vr) (Max): 100 V
- Current - Average Rectified (Io): 3A
- Voltage - Forward (Vf) (Max) @ If: 875 mV @ 4 A
- Speed: Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr): 30 ns
- Current - Reverse Leakage @ Vr: 5 µA @ 100 V
- Capacitance @ Vr, F: 60pF @ 10V, 1MHz
- Mounting Type: Through Hole
- Package / Case: B, Axial
- Supplier Device Package: -
- Operating Temperature - Junction: -65°C ~ 175°C
Related Products
onsemi
MMBD6050LT3G
Panjit International Inc.
PG154_R2_00001
Vishay General Semiconductor - Diodes Division
SF4007-TR
STMicroelectronics
STPSC8H065G-TR
Vishay General Semiconductor - Diodes Division
US1K-E3/61T
Comchip Technology
CDBUR0520
Vishay General Semiconductor - Diodes Division
BAT54WS-G3-18
Microchip Technology
UES1103SM/TR
Microchip Technology

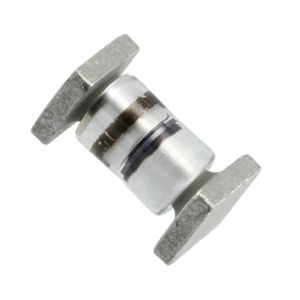

JANTX1N5420US/TR

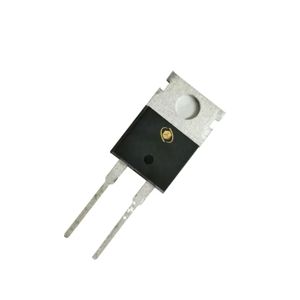

Global Power Technology-GPT
