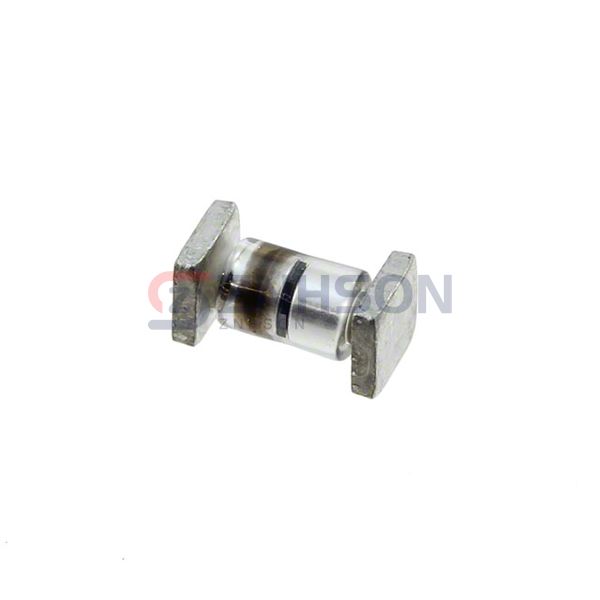

JANTX1N5806US/TR
Microchip Technology
Microchip Technology
UFR,FRR
$7.12
Available to order
Reference Price (USD)
1+
$7.12500
500+
$7.05375
1000+
$6.9825
1500+
$6.91125
2000+
$6.84
2500+
$6.76875
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Boost your electronic designs with JANTX1N5806US/TR Single Rectifier Diodes by Microchip Technology, offering unparalleled efficiency and durability. Ideal for power supplies, inverters, and DC-DC converters, these diodes feature ultra-low leakage and high junction temperature tolerance. Their robust design ensures stable performance in extreme conditions. Whether for prototyping or mass production, Microchip Technology has you covered. Request a quote or technical support today!
Specifications
- Product Status: Active
- Diode Type: Standard
- Voltage - DC Reverse (Vr) (Max): 150 V
- Current - Average Rectified (Io): 1A
- Voltage - Forward (Vf) (Max) @ If: 975 mV @ 2.5 A
- Speed: Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr): 25 ns
- Current - Reverse Leakage @ Vr: 1 µA @ 150 V
- Capacitance @ Vr, F: 25pF @ 10V, 1MHz
- Mounting Type: Surface Mount
- Package / Case: SQ-MELF, A
- Supplier Device Package: D-5A
- Operating Temperature - Junction: -65°C ~ 175°C
Related Products
Diotec Semiconductor

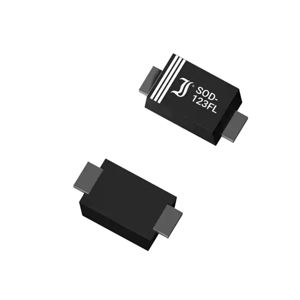

SKM14
Vishay General Semiconductor - Diodes Division

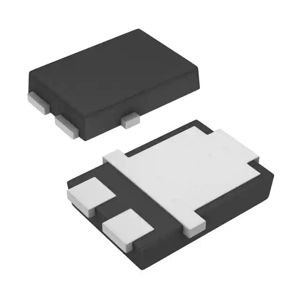

SE40PDHM3_A/H
Vishay General Semiconductor - Diodes Division

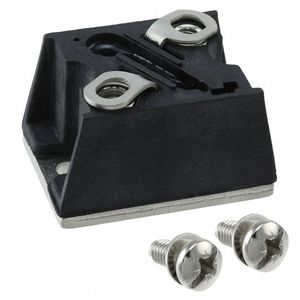

VS-T85HFL20S05
Rohm Semiconductor

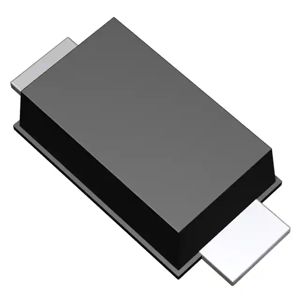

RB168MM-30TFTR
Vishay General Semiconductor - Diodes Division

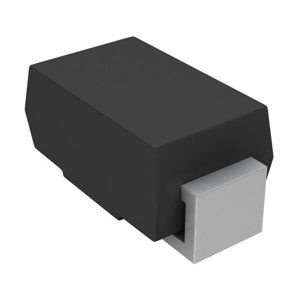

SL12-M3/5AT
onsemi

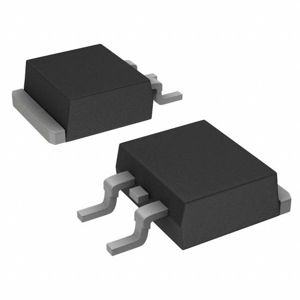

FFSB1265A
Vishay General Semiconductor - Diodes Division

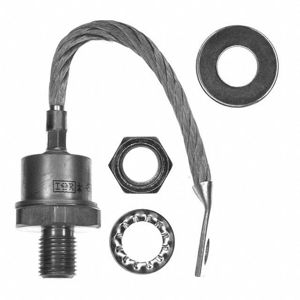

VS-SD200N24PC
Comchip Technology

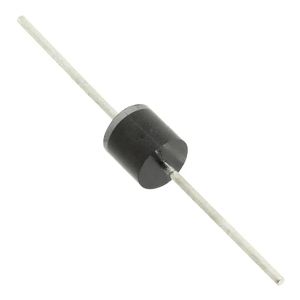

6A08B-G
