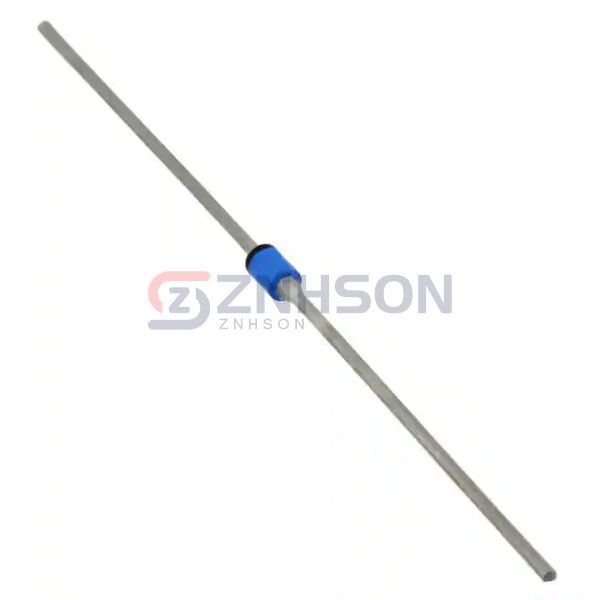

JANTX1N5809/TR
Microchip Technology
Microchip Technology
RECTIFIER UFR,FRR
$7.28
Available to order
Reference Price (USD)
1+
$7.27500
500+
$7.20225
1000+
$7.1295
1500+
$7.05675
2000+
$6.984
2500+
$6.91125
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Experience next-level performance with Microchip Technology's JANTX1N5809/TR Single Rectifier Diodes, designed for high-power applications. These diodes provide excellent rectification efficiency, making them suitable for solar panels, electric vehicles, and UPS systems. Key features include high current density, fast recovery, and superior thermal management. Microchip Technology stands by its products with rigorous testing and quality assurance. Need assistance? Contact our sales team now!
Specifications
- Product Status: Active
- Diode Type: Standard
- Voltage - DC Reverse (Vr) (Max): 100 V
- Current - Average Rectified (Io): 3A
- Voltage - Forward (Vf) (Max) @ If: 875 mV @ 4 A
- Speed: Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr): 30 ns
- Current - Reverse Leakage @ Vr: 5 µA @ 100 V
- Capacitance @ Vr, F: 60pF @ 10V, 1MHz
- Mounting Type: Through Hole
- Package / Case: B, Axial
- Supplier Device Package: -
- Operating Temperature - Junction: -65°C ~ 175°C
