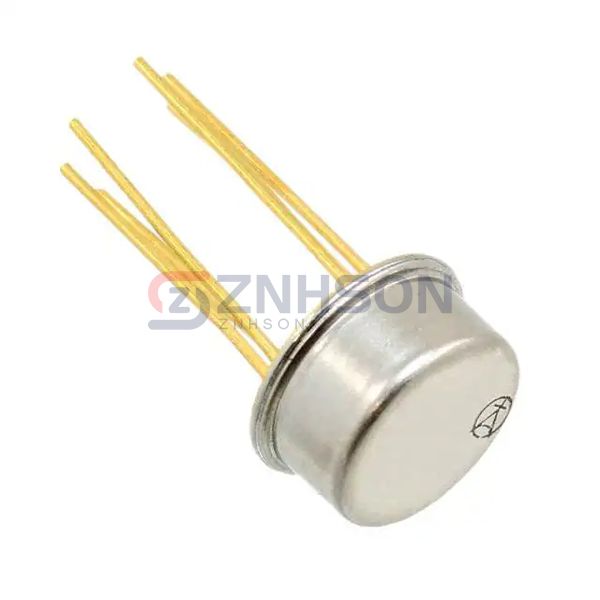

JANTX4N49
TT Electronics/Optek Technology
TT Electronics/Optek Technology
OPTOISO 1KV TRANS W/BASE TO78-6
$25.18
Available to order
Reference Price (USD)
1+
$20.27000
100+
$19.65000
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Ensure optimal performance in your electronic designs with JANTX4N49 Optoisolators from TT Electronics/Optek Technology. Featuring Photovoltaic Output, these isolators are ideal for applications in automotive, IoT, and smart grid systems, offering high-speed signal transmission and robust isolation. Backed by TT Electronics/Optek Technology's expertise, these components are a smart investment for any project. Contact us today to discuss your requirements and receive a tailored quote!
Specifications
- Product Status: Active
- Number of Channels: 1
- Voltage - Isolation: 1000VDC
- Current Transfer Ratio (Min): 200% @ 1mA
- Current Transfer Ratio (Max): 1000% @ 1mA
- Turn On / Turn Off Time (Typ): -
- Rise / Fall Time (Typ): 20µs, 20µs (Max)
- Input Type: DC
- Output Type: Transistor with Base
- Voltage - Output (Max): 40V
- Current - Output / Channel: 50mA
- Voltage - Forward (Vf) (Typ): 1.5V (Max)
- Current - DC Forward (If) (Max): 40 mA
- Vce Saturation (Max): 300mV
- Operating Temperature: -55°C ~ 125°C
- Mounting Type: Through Hole
- Package / Case: TO-78-6 Metal Can
- Supplier Device Package: TO-78-6
