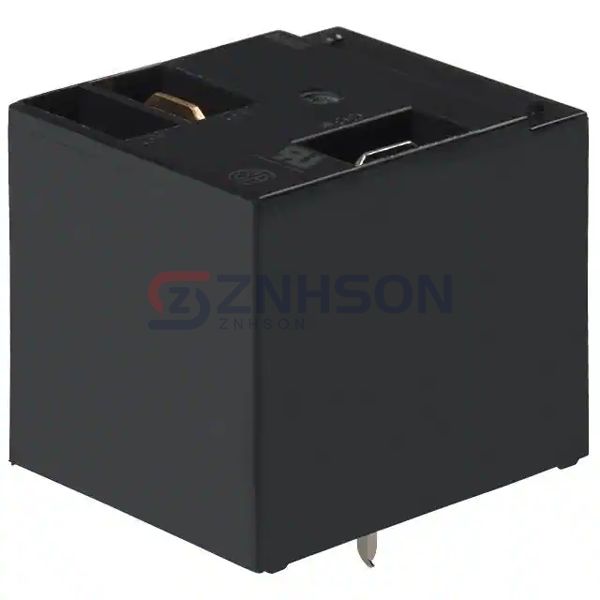

JTN1S-TMP-F-DC24V
Panasonic Electric Works
Panasonic Electric Works
RELAY GEN PURPOSE SPDT 20A 24V
$4.31
Available to order
Reference Price (USD)
1+
$4.63000
10+
$4.34300
25+
$3.86000
50+
$3.66700
100+
$3.47400
250+
$3.08800
500+
$2.89500
1,000+
$2.70200
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The Panasonic Electric Works JTN1S-TMP-F-DC24V series represents the next generation of high-amperage Power Relays, combining innovative coil designs with vibration-resistant mechanics. Ideal for harsh environments in marine, aerospace, and oil/gas industries. Features include LED operation indicators and solder/quick-connect terminals. Inquire about our relay customization services today!
Specifications
- Product Status: Obsolete
- Mounting Type: Through Hole
- Coil Voltage: 24VDC
- Contact Form: SPDT (1 Form C)
- Contact Rating (Current): 20 A
- Switching Voltage: 277VAC - Max
- Coil Current: 33.3 mA
- Coil Type: Non Latching
- Features: -
- Termination Style: PC Pin, Quick Connect - 0.250" (6.3mm)
- Seal Rating: Sealed - Fully
- Coil Insulation: Class F
- Must Operate Voltage: 18 VDC
- Must Release Voltage: 2.4 VDC
- Operate Time: 20 ms
- Release Time: 10 ms
- Operating Temperature: -55°C ~ 85°C
- Contact Material: Silver Tin Oxide (AgSnO)
- Relay Type: General Purpose
