L6202
STMicroelectronics
STMicroelectronics

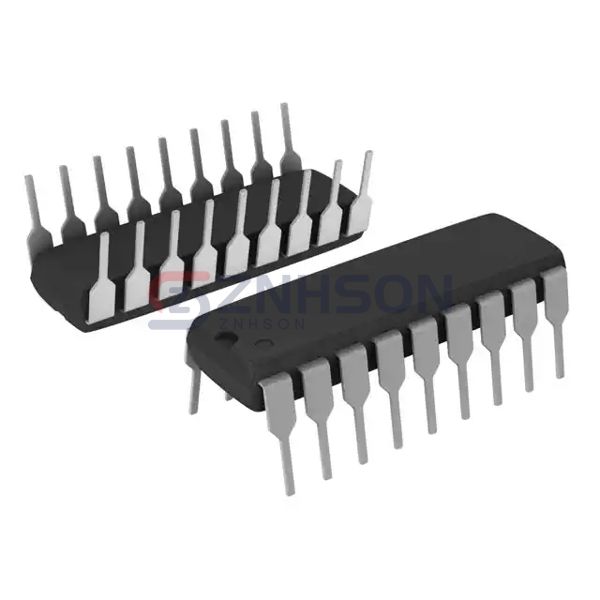

IC MOTOR DRIVER PAR 18POWERDIP
$9.88
Available to order
Reference Price (USD)
1+
$7.00000
20+
$6.32550
100+
$5.23680
500+
$4.56010
1,000+
$3.97170
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The STMicroelectronics L6202 series offers versatile full/half-bridge driver solutions for modern power electronics. Featuring dual MOSFET gate drivers with independent inputs, these PMICs provide exceptional flexibility in motor control and switched-mode power supply designs. Advanced protection mechanisms include undervoltage lockout and thermal shutdown, while the high-current drive capability ensures efficient switching of power transistors. Suitable for industrial, automotive, and consumer applications. Request technical documentation or samples through our quick inquiry form.
Specifications
- Product Status: Active
- Output Configuration: Half Bridge (2)
- Applications: DC Motors, General Purpose
- Interface: Logic
- Load Type: Inductive
- Technology: BCDMOS
- Rds On (Typ): 300mOhm
- Current - Output / Channel: 1.5A
- Current - Peak Output: -
- Voltage - Supply: 12V ~ 48V
- Voltage - Load: 12V ~ 48V
- Operating Temperature: -40°C ~ 150°C (TJ)
- Features: Bootstrap Circuit
- Fault Protection: Over Temperature
- Mounting Type: Through Hole
- Package / Case: 18-DIP (0.300", 7.62mm)
- Supplier Device Package: 18-PowerDIP
