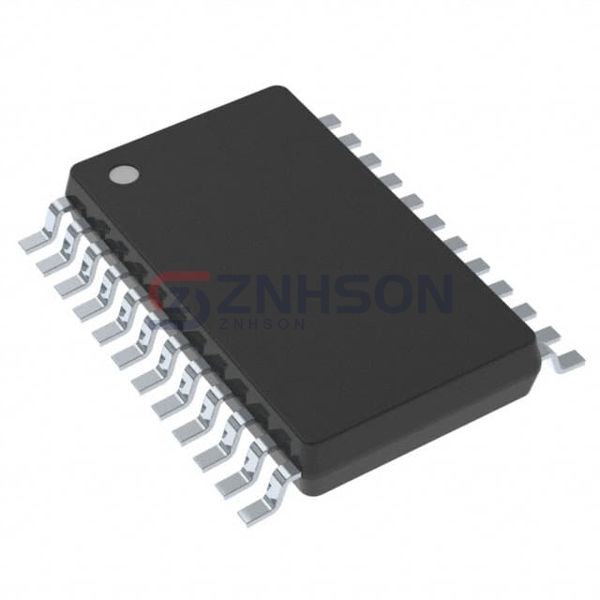

L9959S-TR-D
STMicroelectronics
STMicroelectronics
IC H-BRIDGE HIGH SIDE 24PSSOP
$3.98
Available to order
Reference Price (USD)
1,000+
$2.38000
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
STMicroelectronics L9959S-TR-D bridge drivers deliver intelligent power management for sophisticated electronic systems. These PMICs feature synchronous rectification capability, adjustable switching frequency, and comprehensive fault protection suitable for medical equipment and aerospace applications. The advanced gate drive technology ensures minimal power dissipation while maintaining precise control over power switches. With both full and half-bridge configurations available, they offer design versatility across multiple voltage classes. For OEM pricing and delivery options, please submit your inquiry to our sales department.
Specifications
- Product Status: Active
- Output Configuration: Half Bridge (2)
- Applications: General Purpose
- Interface: SPI
- Load Type: Inductive, Capacitive, Resistive
- Technology: PMOS
- Rds On (Typ): -
- Current - Output / Channel: 3A
- Current - Peak Output: -
- Voltage - Supply: 4.5V ~ 5.5V
- Voltage - Load: 5V ~ 28V
- Operating Temperature: -40°C ~ 150°C (TJ)
- Features: -
- Fault Protection: Over Temperature, Short Circuit
- Mounting Type: Surface Mount
- Package / Case: 24-PowerBSOP (0.295", 7.50mm Width)
- Supplier Device Package: PowerSSO-24
