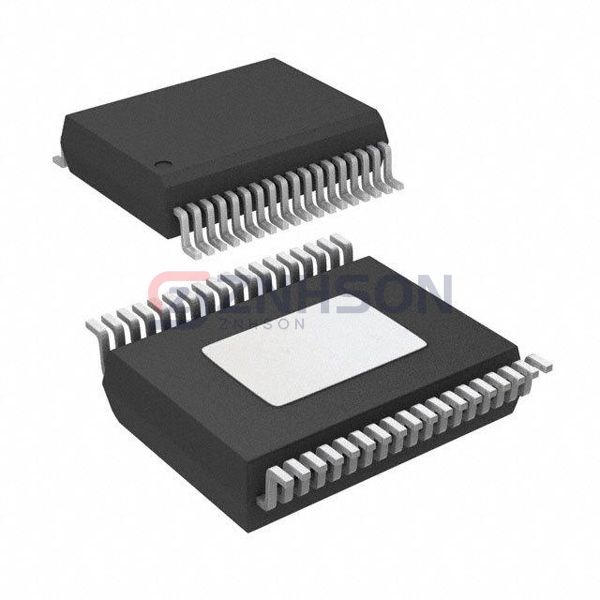

L9959U-TR-D
STMicroelectronics
STMicroelectronics
POWERSSO36
$4.68
Available to order
Reference Price (USD)
1,000+
$2.80000
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The STMicroelectronics L9959U-TR-D series represents the pinnacle of bridge driver technology for professional power electronics. These PMICs feature advanced PWM interface compatibility, programmable current limiting, and real-time status monitoring for system diagnostics. Perfect for high-power audio systems, automated test equipment, and precision servo controls, they deliver clean switching transitions with minimal ringing. The innovative package design enhances thermal dissipation while reducing PCB footprint. Contact our technical sales team for application notes and design-in assistance with these superior bridge drivers.
Specifications
- Product Status: Active
- Output Configuration: Half Bridge (2)
- Applications: General Purpose
- Interface: SPI
- Load Type: Inductive, Capacitive, Resistive
- Technology: PMOS
- Rds On (Typ): -
- Current - Output / Channel: 3A
- Current - Peak Output: -
- Voltage - Supply: 4.5V ~ 5.5V
- Voltage - Load: 5V ~ 28V
- Operating Temperature: -40°C ~ 150°C (TJ)
- Features: -
- Fault Protection: Over Temperature, Short Circuit
- Mounting Type: Surface Mount
- Package / Case: 36-PowerFSOP (0.295", 7.50mm Width)
- Supplier Device Package: PowerSSO-36 EPD
