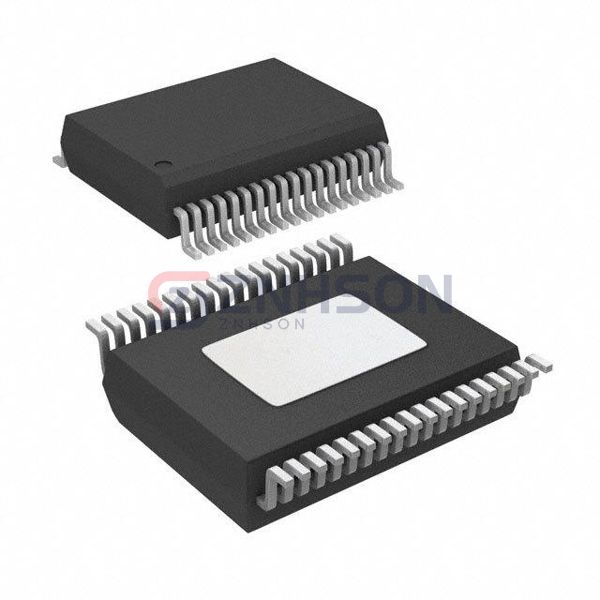

L9960T
STMicroelectronics
STMicroelectronics
IC HALF-BRIDGE DRVR SPI PWRSSO36
$8.41
Available to order
Reference Price (USD)
1+
$8.41000
500+
$8.3259
1000+
$8.2418
1500+
$8.1577
2000+
$8.0736
2500+
$7.9895
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The STMicroelectronics L9960T series represents the pinnacle of bridge driver technology for professional power electronics. These PMICs feature advanced PWM interface compatibility, programmable current limiting, and real-time status monitoring for system diagnostics. Perfect for high-power audio systems, automated test equipment, and precision servo controls, they deliver clean switching transitions with minimal ringing. The innovative package design enhances thermal dissipation while reducing PCB footprint. Contact our technical sales team for application notes and design-in assistance with these superior bridge drivers.
Specifications
- Product Status: Active
- Output Configuration: Half Bridge (2)
- Applications: General Purpose
- Interface: SPI
- Load Type: Inductive, Capacitive, Resistive
- Technology: Power MOSFET
- Rds On (Typ): 400mOhm LS + HS
- Current - Output / Channel: -
- Current - Peak Output: -
- Voltage - Supply: 4.5V ~ 5.5V
- Voltage - Load: 4.5V ~ 28V
- Operating Temperature: -40°C ~ 170°C (TJ)
- Features: Slew Rate Controlled
- Fault Protection: Over Temperature, Short Circuit
- Mounting Type: Surface Mount
- Package / Case: 36-PowerBFSOP (0.295", 7.50mm Width)
- Supplier Device Package: PowerSSO-36 EPD
