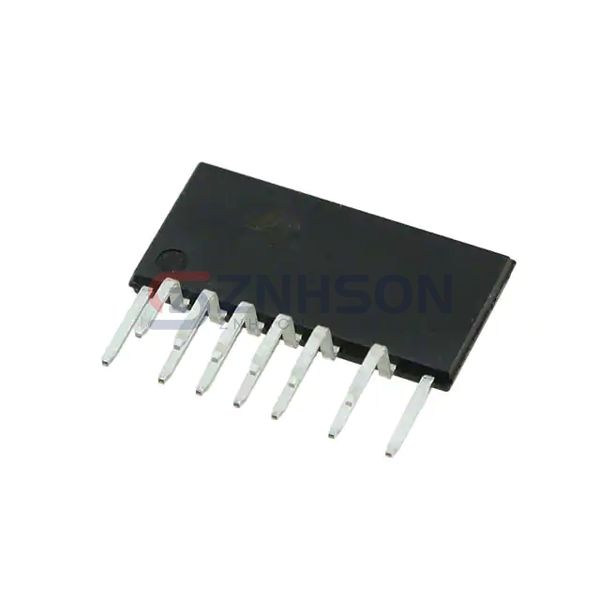

LCS702HG

Power Integrations

Manufacturer

Power Integrations

Description:

IC LLC CTRL MFET 220W ESIP16C

Datasheet:

LCS702HG Datasheet

$4.45

Available to order

Reference Price (USD)

$5.14000

100+

$4.24200

1,000+

$3.59560

Exquisite packaging

Discount

TT / Paypal / Credit Card / Western Union / Money Gram

The Power Integrations LCS702HG series offers versatile full/half-bridge driver solutions for modern power electronics. Featuring dual MOSFET gate drivers with independent inputs, these PMICs provide exceptional flexibility in motor control and switched-mode power supply designs. Advanced protection mechanisms include undervoltage lockout and thermal shutdown, while the high-current drive capability ensures efficient switching of power transistors. Suitable for industrial, automotive, and consumer applications. Request technical documentation or samples through our quick inquiry form.

Specifications

Product Status: Active
Output Configuration: Half Bridge
Applications: General Purpose
Interface: On/Off
Load Type: Inductive
Technology: Power MOSFET
Rds On (Typ): 740mOhm
Current - Output / Channel: -
Current - Peak Output: 10.3A
Voltage - Supply: 11.4V ~ 15V
Voltage - Load: 11.4V ~ 15V
Operating Temperature: -40°C ~ 150°C (TJ)
Features: Auto Restart, Slew Rate Controlled
Fault Protection: Current Limiting, Over Temperature, Over Voltage, Short Circuit, UVLO
Mounting Type: Through Hole
Package / Case: 16-SSIP, 13 Leads, Exposed Pad, Formed Leads
Supplier Device Package: eSIP-16J
