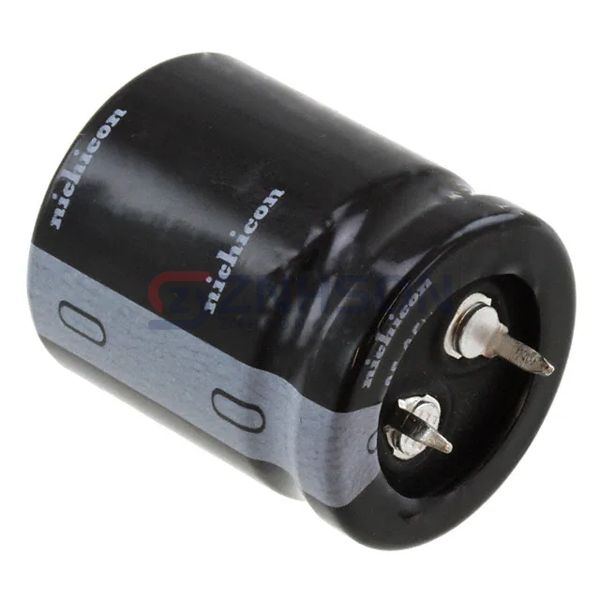

LLS1V562MELA
Nichicon
Nichicon
CAP ALUM 5600UF 20% 35V SNAP
$3.36
Available to order
Reference Price (USD)
1+
$2.75000
10+
$2.22800
100+
$1.70100
500+
$1.29600
1,000+
$1.13400
2,500+
$1.10160
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Elevate your electronics with LLS1V562MELA Aluminum Electrolytic Capacitors by Nichicon. These capacitors combine high capacitance, compact design, and exceptional reliability for applications in audio/video equipment, IoT devices, and power electronics. LLS1V562MELA is your trusted choice for quality and performance. Contact our sales team today to explore our product range and place your order.
Specifications
- Product Status: Active
- Capacitance: 5600 µF
- Tolerance: ±20%
- Voltage - Rated: 35 V
- ESR (Equivalent Series Resistance): -
- Lifetime @ Temp.: 3000 Hrs @ 85°C
- Operating Temperature: -40°C ~ 85°C
- Polarization: Polar
- Ratings: -
- Applications: General Purpose
- Ripple Current @ Low Frequency: 2.75 A @ 120 Hz
- Ripple Current @ High Frequency: 3.1625 A @ 50 kHz
- Impedance: -
- Lead Spacing: 0.394" (10.00mm)
- Size / Dimension: 0.984" Dia (25.00mm)
- Height - Seated (Max): 1.260" (32.00mm)
- Surface Mount Land Size: -
- Mounting Type: Through Hole
- Package / Case: Radial, Can - Snap-In
