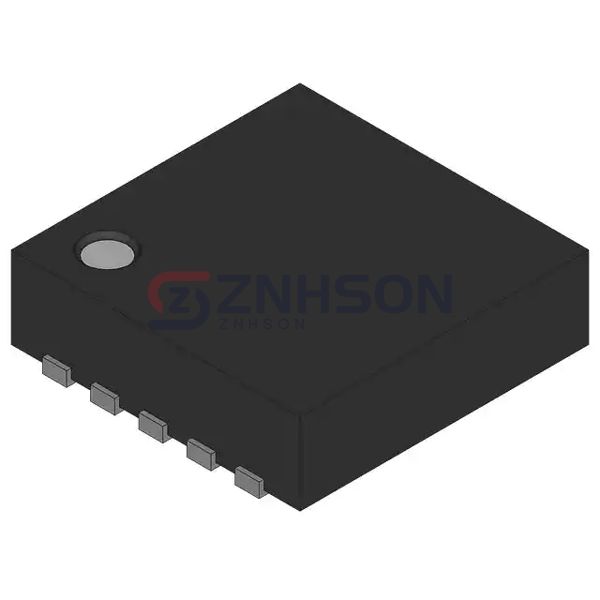

LM5100ASD
National Semiconductor
National Semiconductor
HALF BRIDGE BASED MOSFET DRIVER,
$1.74
Available to order
Reference Price (USD)
1,000+
$2.13920
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The LM5100ASD Gate Drivers from National Semiconductor deliver unmatched performance for your power management needs. These ICs are packed with features like fast switching, high voltage tolerance, and minimal propagation delay, ideal for use in telecom infrastructure, renewable energy, and home automation. National Semiconductor prides itself on providing solutions that exceed expectations. Contact us now to find out how we can help you achieve your goals.
Specifications
- Product Status: Active
- Driven Configuration: Half-Bridge
- Channel Type: Independent
- Number of Drivers: 2
- Gate Type: N-Channel MOSFET
- Voltage - Supply: 9V ~ 14V
- Logic Voltage - VIL, VIH: 2.3V, -
- Current - Peak Output (Source, Sink): 3A, 3A
- Input Type: Non-Inverting
- High Side Voltage - Max (Bootstrap): 118 V
- Rise / Fall Time (Typ): 430ns, 260ns
- Operating Temperature: -40°C ~ 125°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: 10-WDFN Exposed Pad
- Supplier Device Package: 10-WSON (4x4)
Related Products
Texas Instruments
TPS2836D
onsemi
ADP3121JRZ-RL
Texas Instruments
TPIC46L02DBG4
Richtek USA Inc.
RT9624CGQWA
Infineon Technologies
IR2213STRPBF
Intersil

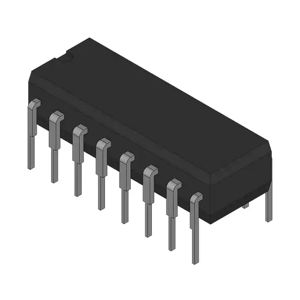

HIP4082IP
Analog Devices Inc.

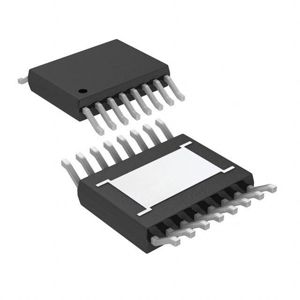

LTC7000MPMSE#PBF
Rohm Semiconductor

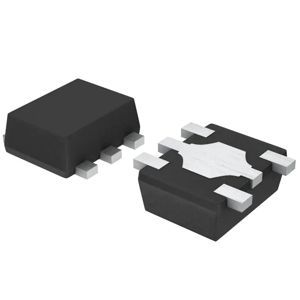

BD2270HFV-LBTR
