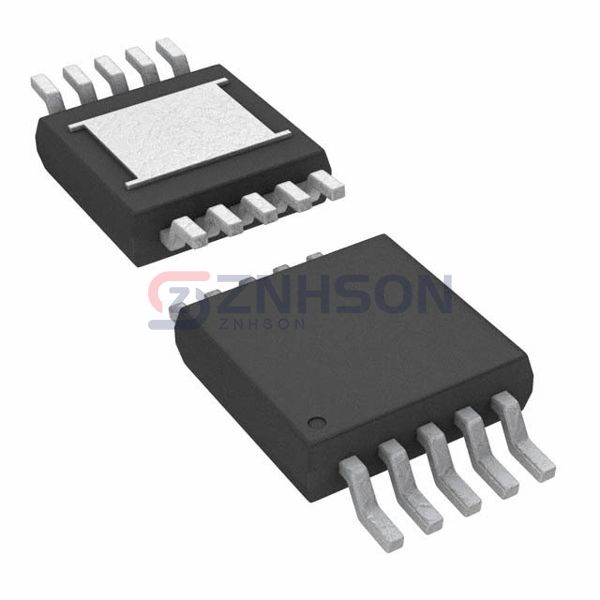

LTC3809EMSE-1#PBF

Linear Technology

Manufacturer

Linear Technology

Description:

LTC3809-1 - NO RSENSE, LOW EMI D

Datasheet:

LTC3809EMSE-1#PBF Datasheet

$4.33

Available to order

Reference Price (USD)

250+

$3.16540

Exquisite packaging

Discount

TT / Paypal / Credit Card / Western Union / Money Gram

The LTC3809EMSE-1#PBF DC DC Switching Controller by Linear Technology sets a new standard in power management technology. This PMIC voltage regulator is perfect for high-performance applications, including electric vehicles, industrial automation, and smart home devices. Featuring low noise operation and high power density, Linear Technology's LTC3809EMSE-1#PBF ensures optimal performance in any environment. Take the next step in your project contact us for a detailed consultation and pricing information.

Specifications

Product Status: Obsolete
Output Type: Transistor Driver
Function: Step-Down
Output Configuration: Positive
Topology: Buck
Number of Outputs: 1
Output Phases: 1
Voltage - Supply (Vcc/Vdd): 2.75V ~ 9.8V
Frequency - Switching: 550kHz
Duty Cycle (Max): 100%
Synchronous Rectifier: Yes
Clock Sync: No
Serial Interfaces: -
Control Features: Current Limit, Dead Time Control, Enable, Frequency Control, Soft Start, Tracking
Operating Temperature: -40°C ~ 85°C
Mounting Type: Surface Mount
Package / Case: 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) Exposed Pad
Supplier Device Package: 10-MSOP-EP
