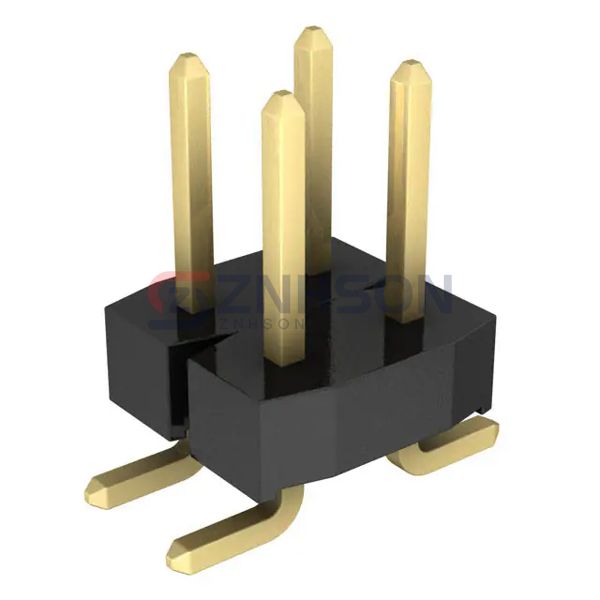

M22-5300205
Harwin Inc.
Harwin Inc.
CONN HEADER SMD 4POS 2MM
$0.63
Available to order
Reference Price (USD)
1+
$0.49000
10+
$0.45900
152+
$0.35191
608+
$0.30600
1,064+
$0.25245
5,016+
$0.22185
10,032+
$0.20655
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Boost your project's efficiency with M22-5300205 Harwin Inc. Rectangular Connectors - Headers, Male Pins. These connectors ensure low insertion force, high mating cycles, and EMI shielding for superior performance. Ideal for medical equipment, robotics, and telecommunications. Need a quote? Contact us today and let s discuss your requirements!
Specifications
- Product Status: Active
- Connector Type: Header, Cuttable
- Contact Type: Male Pin
- Pitch - Mating: 0.079" (2.00mm)
- Number of Positions: 4
- Number of Rows: 2
- Row Spacing - Mating: 0.079" (2.00mm)
- Number of Positions Loaded: All
- Style: Board to Board
- Shrouding: Unshrouded
- Mounting Type: Surface Mount
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.138" (3.50mm)
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: 0.059" (1.50mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: Flash
- Contact Finish - Post: -
- Contact Material: Phosphor Bronze
- Insulation Material: Polyamide (PA6T), Nylon 6T
- Features: Board Guide
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 1A per Contact
- Voltage Rating: -
