M22-5321005
Harwin Inc.
Harwin Inc.
CONN HEADER SMD 20POS 2MM
$2.17
Available to order
Reference Price (USD)
1+
$1.70000
10+
$1.54400
100+
$1.32300
500+
$1.10250
1,000+
$0.94500
5,000+
$0.83790
10,000+
$0.81900
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The M22-5321005 Harwin Inc. Rectangular Connectors - Headers, Male Pins offer unmatched reliability for your electronic assembly needs. With features like corrosion resistance, high-temperature tolerance, and easy mating, these connectors are suited for aerospace, medical devices, and more. Trust Harwin Inc. for top-tier connectivity solutions. Interested? Get in touch today for pricing and availability!
Specifications
- Product Status: Active
- Connector Type: Header, Cuttable
- Contact Type: Male Pin
- Pitch - Mating: 0.079" (2.00mm)
- Number of Positions: 20
- Number of Rows: 2
- Row Spacing - Mating: 0.079" (2.00mm)
- Number of Positions Loaded: All
- Style: Board to Board
- Shrouding: Unshrouded
- Mounting Type: Surface Mount
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.138" (3.50mm)
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: 0.059" (1.50mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: -
- Contact Material: Phosphor Bronze
- Insulation Material: Polyamide (PA6T), Nylon 6T
- Features: -
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 1A per Contact
- Voltage Rating: -
Related Products
Samtec Inc.
TMM-103-05-T-S
Samtec Inc.
FTMH-125-03-F-DV-P
Sullins Connector Solutions
NRPN252PAEN-RC
Samtec Inc.
TSM-108-01-S-SV-004-P-TR
Samtec Inc.
FTSH-107-03-F-DV-P
Samtec Inc.
TSW-108-26-L-S
Amphenol ICC (FCI)
67996-408HLF
Harwin Inc.
M80-5000000M2-12-331-00-000
Samtec Inc.

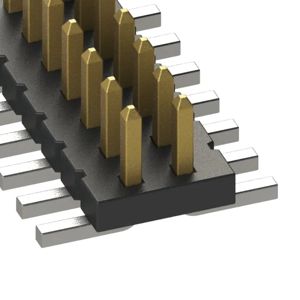

FTS-117-02-F-DV
