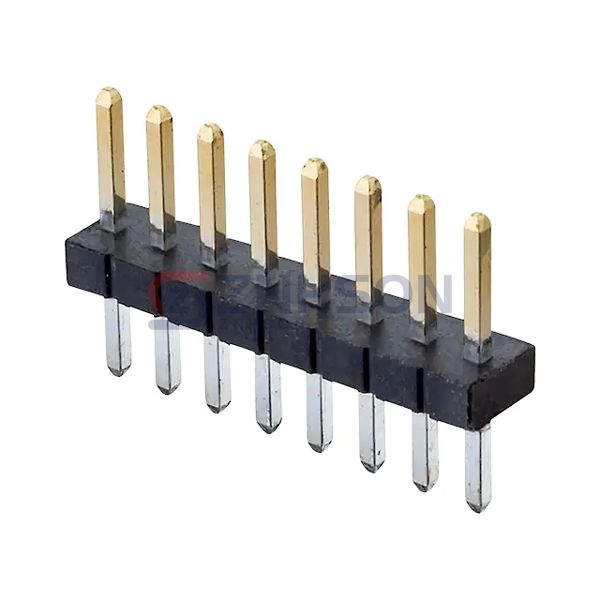

M50-3530842
Harwin Inc.
Harwin Inc.
CONN HEADER VERT 8POS 1.27MM
$0.38
Available to order
Reference Price (USD)
1+
$0.29000
10+
$0.27300
100+
$0.19110
500+
$0.16380
1,000+
$0.13650
5,000+
$0.11700
10,000+
$0.10920
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Ensure seamless connectivity with M50-3530842 Harwin Inc. Rectangular Connectors - Headers, Male Pins. These connectors are built to last, featuring robust contacts, compact design, and versatile mounting options. Ideal for data communication, power supply, and control systems. Don't compromise on quality reach out to us now for your connector requirements!
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.050" (1.27mm)
- Number of Positions: 8
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.118" (3.00mm)
- Contact Length - Post: 0.091" (2.30mm)
- Overall Contact Length: 0.248" (6.30mm)
- Insulation Height: 0.039" (1.00mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Polyamide (PA9T), Nylon 9T
- Features: -
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 1A per Contact
- Voltage Rating: -
Related Products
Molex
0022112232
Samtec Inc.
TFM-120-12-F-D
Samtec Inc.
TSW-105-23-S-S
Samtec Inc.
FTSH-109-04-L-DH-A-C

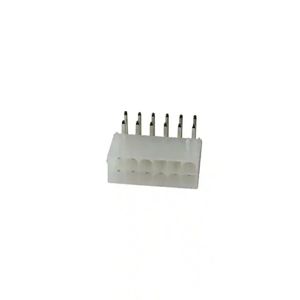

Adam Tech
DMF-12-R-N-P

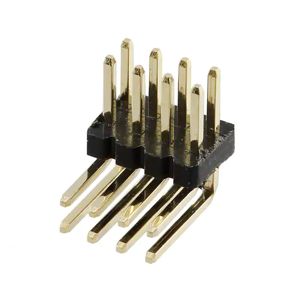

Sullins Connector Solutions
GRPB042MWCN-RC
Molex
0022046124
Samtec Inc.
FTSH-105-01-LM-DH-A-C

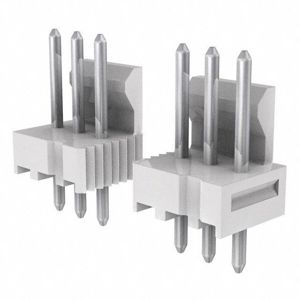

Molex
