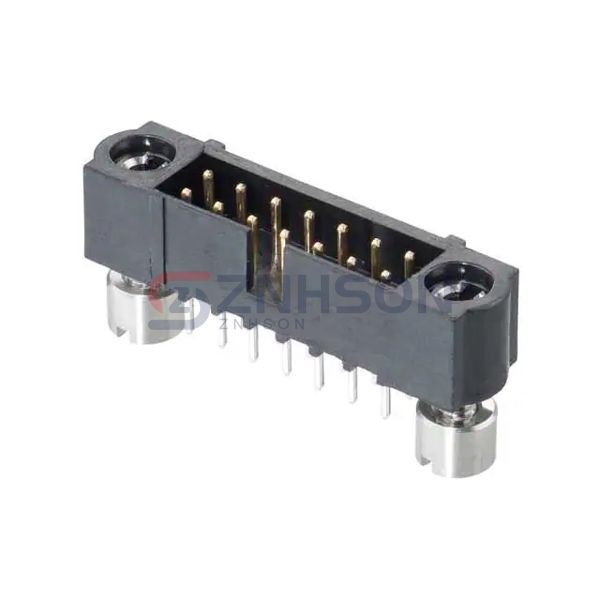

M80-5T12042ME
Harwin Inc.
Harwin Inc.
CONN HDR 2MM PCB 20POS
$25.51
Available to order
Reference Price (USD)
1+
$25.51000
500+
$25.2549
1000+
$24.9998
1500+
$24.7447
2000+
$24.4896
2500+
$24.2345
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The M80-5T12042ME Harwin Inc. Rectangular Connectors - Headers, Male Pins are designed for excellence in every connection. With features like polarized housings, vibration resistance, and RoHS compliance, they meet the highest industry standards. Suitable for LED lighting, HVAC systems, and more. Get yours today submit an inquiry now!
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.079" (2.00mm)
- Number of Positions: 20
- Number of Rows: 2
- Row Spacing - Mating: 0.079" (2.00mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Turn Lock
- Contact Length - Mating: -
- Contact Length - Post: 0.130" (3.30mm)
- Overall Contact Length: -
- Insulation Height: 0.220" (5.60mm)
- Contact Shape: Circular
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 29.5µin (0.75µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Polyphenylene Sulfide (PPS), Glass Filled
- Features: Keying Slot, Mating Flange
- Operating Temperature: -55°C ~ 121°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 2.2A
- Voltage Rating: 800VAC/DC
Related Products
Samtec Inc.
FTSH-119-03-L-DV-A
Harwin Inc.
M80-8820422
Molex
09-78-1061
Molex
0022284232
Samtec Inc.
FTSH-145-01-F-DH
Samtec Inc.
TSM-107-01-L-DH-TR
TE Connectivity AMP Connectors
2-5499141-8
Amphenol ICC (FCI)
77317-112-44LF
JST Sales America Inc.

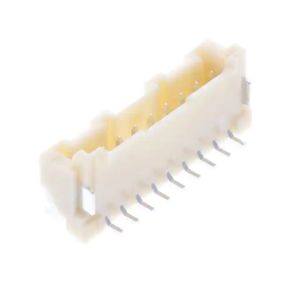

BM09B-PASS-1-TFT(LF)(SN)
