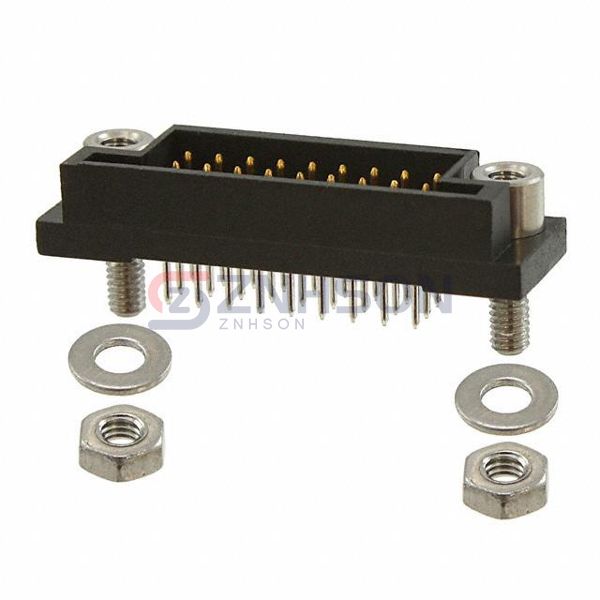

M80-7002722
Harwin Inc.
Harwin Inc.
CONN HEADER VERT 27POS 2MM
$13.71
Available to order
Reference Price (USD)
60+
$11.39400
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The M80-7002722 Harwin Inc. Rectangular Connectors - Headers, Male Pins are the perfect choice for high-performance electronic connections. Designed for durability and efficiency, they support a wide range of applications, from automotive to IoT devices. Experience the Harwin Inc. difference today. Contact us for more details and a customized solution!
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.079" (2.00mm)
- Number of Positions: 27
- Number of Rows: 3
- Row Spacing - Mating: 0.079" (2.00mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Threaded
- Contact Length - Mating: -
- Contact Length - Post: 0.118" (3.00mm)
- Overall Contact Length: -
- Insulation Height: 0.244" (6.20mm)
- Contact Shape: Circular
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 29.5µin (0.75µm)
- Contact Finish - Post: Tin-Lead
- Contact Material: Phosphor Bronze
- Insulation Material: Polyamide (PA46), Nylon 4/6
- Features: Mating Flange, Mounting Flange, Mounting Hardware
- Operating Temperature: -55°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 2.2A
- Voltage Rating: 120V
