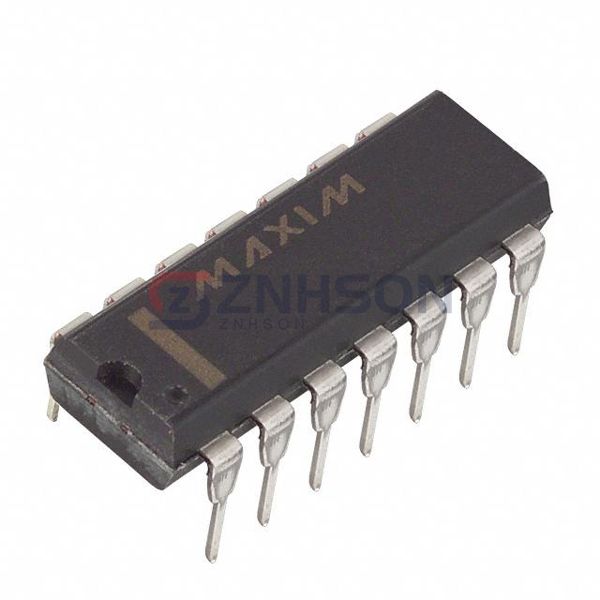

MAX4066AEPD
Analog Devices Inc./Maxim Integrated
Analog Devices Inc./Maxim Integrated
IC SWITCH QUAD SPST 14DIP
$2.72
Available to order
Reference Price (USD)
1+
$2.72000
500+
$2.6928
1000+
$2.6656
1500+
$2.6384
2000+
$2.6112
2500+
$2.584
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover high-quality Analog Devices Inc./Maxim Integrated MAX4066AEPD Analog Switches, Multiplexers, and Demultiplexers designed for seamless signal routing in various applications. These ICs offer reliable performance, low power consumption, and excellent signal integrity, making them ideal for communication systems, industrial automation, and consumer electronics. Whether you need precision switching or efficient signal distribution, our Interface ICs deliver unmatched versatility. Contact us today for a quote and let our experts assist you in finding the perfect solution for your project.
Specifications
- Product Status: Obsolete
- Switch Circuit: SPST - NO
- Multiplexer/Demultiplexer Circuit: 1:1
- Number of Circuits: 4
- On-State Resistance (Max): 45Ohm
- Channel-to-Channel Matching (ΔRon): 500mOhm
- Voltage - Supply, Single (V+): 2V ~ 16V
- Voltage - Supply, Dual (V±): -
- Switch Time (Ton, Toff) (Max): 100ns, 75ns
- -3db Bandwidth: 100MHz
- Charge Injection: 1pC
- Channel Capacitance (CS(off), CD(off)): 9pF, 9pF
- Current - Leakage (IS(off)) (Max): 100pA
- Crosstalk: -86dB @ 1MHz
- Operating Temperature: -40°C ~ 85°C (TA)
- Mounting Type: Through Hole
- Package / Case: 14-DIP (0.300", 7.62mm)
- Supplier Device Package: 14-PDIP
Related Products
Analog Devices Inc.
ADG508FBRUZ
Analog Devices Inc.
5962-89710013X
Vishay Siliconix
DG2750DN-T1-E4
Texas Instruments
SN74LV4053AN
Fairchild Semiconductor

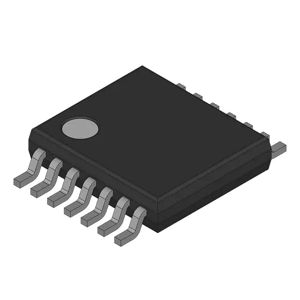

MM74HC4066MTCX
Nexperia USA Inc.

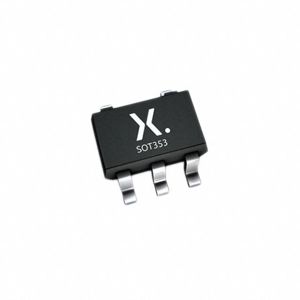

74AHC1G66GW,125
