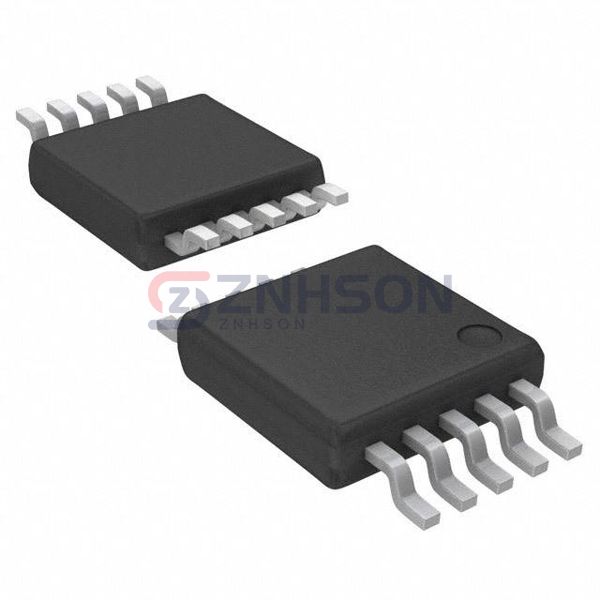

MAX4685EUB+
Analog Devices Inc./Maxim Integrated
Analog Devices Inc./Maxim Integrated
IC SWITCH DUAL SPDT 10UMAX
$5.01
Available to order
Reference Price (USD)
1+
$2.69000
10+
$2.41300
50+
$2.28160
100+
$2.02800
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize signal routing with Analog Devices Inc./Maxim Integrated MAX4685EUB+ Interface ICs, featuring state-of-the-art Analog Switches, Multiplexers, and Demultiplexers. These components are built for precision, offering low leakage current and high-speed operation in automotive infotainment, networking, and more. Choose Analog Devices Inc./Maxim Integrated for components that exceed expectations. Submit your inquiry today and let us provide the perfect solution for your technical challenges.
Specifications
- Product Status: Active
- Switch Circuit: SPDT
- Multiplexer/Demultiplexer Circuit: 2:1
- Number of Circuits: 2
- On-State Resistance (Max): 800mOhm
- Channel-to-Channel Matching (ΔRon): 60mOhm
- Voltage - Supply, Single (V+): 1.8V ~ 5.5V
- Voltage - Supply, Dual (V±): -
- Switch Time (Ton, Toff) (Max): 50ns, 30ns
- -3db Bandwidth: -
- Charge Injection: 200pC
- Channel Capacitance (CS(off), CD(off)): 84pF, 37pF
- Current - Leakage (IS(off)) (Max): 1nA
- Crosstalk: -68dB @ 100kHz
- Operating Temperature: -40°C ~ 85°C (TA)
- Mounting Type: Surface Mount
- Package / Case: 10-TFSOP, 10-MSOP (0.118", 3.00mm Width)
- Supplier Device Package: 10-uMAX/uSOP
