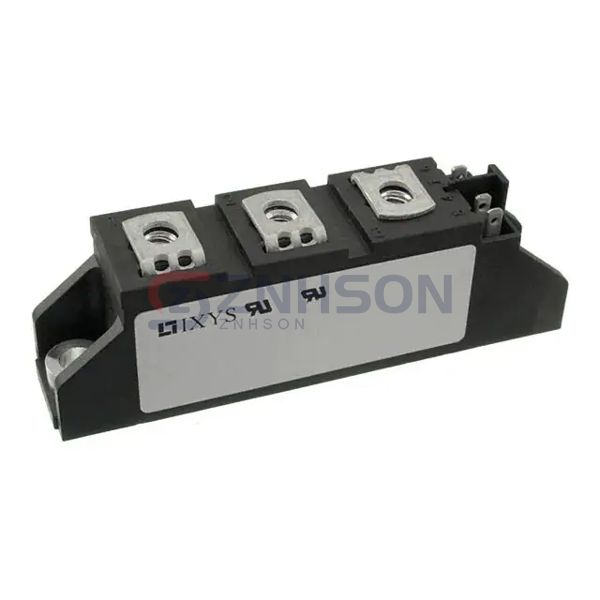

MCNA120PD2200TB
IXYS
IXYS
BIPOLAR MODULE - THYRISTOR TO-2
$50.00
Available to order
Reference Price (USD)
1+
$49.99639
500+
$49.4964261
1000+
$48.9964622
1500+
$48.4964983
2000+
$47.9965344
2500+
$47.4965705
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your power systems with IXYS's MCNA120PD2200TB Thyristors - SCRs - Modules. These modules boast high reliability, low leakage current, and excellent dynamic characteristics, catering to demanding environments like electric vehicles and industrial machinery. Whether for prototyping or mass production, we ve got you covered. Request a sample or quote today and experience the IXYS difference!
Specifications
- Product Status: Active
- Structure: Series Connection - SCR/Diode
- Number of SCRs, Diodes: 1 SCR, 1 Diode
- Voltage - Off State: 2.2 kV
- Current - On State (It (AV)) (Max): 120 A
- Current - On State (It (RMS)) (Max): 190 A
- Voltage - Gate Trigger (Vgt) (Max): 1.5 V
- Current - Gate Trigger (Igt) (Max): 100 mA
- Current - Non Rep. Surge 50, 60Hz (Itsm): 2200A, 2380A
- Current - Hold (Ih) (Max): 150 mA
- Operating Temperature: -40°C ~ 140°C (TJ)
- Mounting Type: Chassis Mount
- Package / Case: TO-240AA
