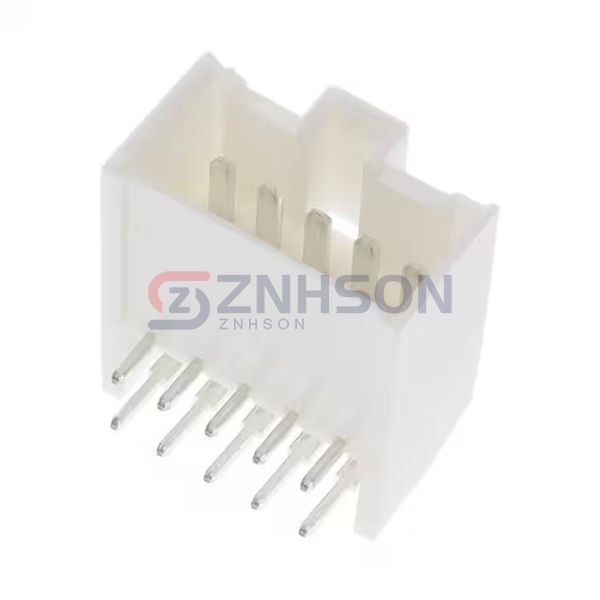

MDF6-10DP-3.5DS(23)
Hirose Electric Co Ltd
Hirose Electric Co Ltd
CONN HEADER R/A 10POS 3.5MM
$2.32
Available to order
Reference Price (USD)
1+
$2.32000
500+
$2.2968
1000+
$2.2736
1500+
$2.2504
2000+
$2.2272
2500+
$2.204
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The MDF6-10DP-3.5DS(23) Hirose Electric Co Ltd Rectangular Connectors - Headers, Male Pins are designed for excellence in every connection. With features like polarized housings, vibration resistance, and RoHS compliance, they meet the highest industry standards. Suitable for LED lighting, HVAC systems, and more. Get yours today submit an inquiry now!
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.138" (3.50mm)
- Number of Positions: 10
- Number of Rows: 2
- Row Spacing - Mating: 0.197" (5.00mm)
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Latch Holder
- Contact Length - Mating: 0.220" (5.60mm)
- Contact Length - Post: 0.138" (3.50mm)
- Overall Contact Length: -
- Insulation Height: 0.445" (11.30mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: 39.4µin (1.00µm)
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Polyamide (PA), Nylon
- Features: -
- Operating Temperature: -30°C ~ 85°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: White
- Current Rating (Amps): Varies by Wire Gauge
- Voltage Rating: 300VAC/DC
Related Products
Samtec Inc.
BBL-120-G-E
Samtec Inc.
TSM-112-01-SM-SV-P-TR
HARTING
09185407921
Samtec Inc.
TSM-108-01-L-DV-TR
Samtec Inc.
TFM-150-22-L-D-A-K
SUPERIOR TECH
PHED-DS004G1ABOGA-A006
Mill-Max Manufacturing Corp.
850-10-032-30-002000
Samtec Inc.

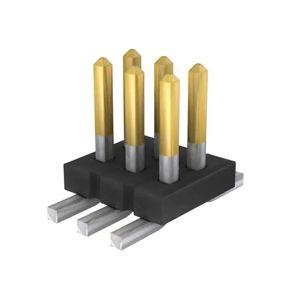

FTS-103-01-LM-DV-TR
TE Connectivity AMP Connectors

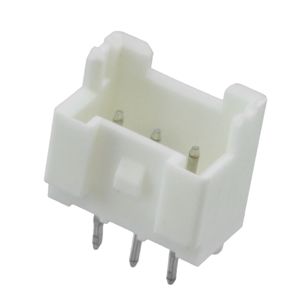

1744418-3
