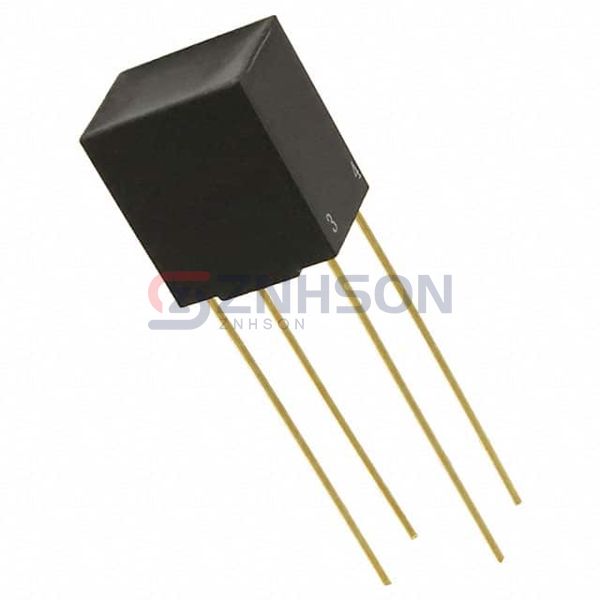

MET-50-T
Triad Magnetics
Triad Magnetics
TRANSFORMER 10K:125 0.0MADC
$18.77
Available to order
Reference Price (USD)
1+
$17.54000
10+
$13.36400
25+
$12.32040
50+
$11.90260
100+
$11.69380
250+
$11.27616
500+
$10.85852
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Transform your audio applications with Triad Magnetics MET-50-T Audio Transformers, featuring cutting-edge technology and reliable performance. These transformers are essential for maintaining sound quality in various setups, from home theaters to professional studios. Trust Triad Magnetics to deliver components that make a difference. Request a quote now and enhance your audio systems.
Specifications
- Product Status: Active
- Turns Ratio - Primary:Secondary: 8.62:1
- Impedance - Primary (Ohms): 10k
- Impedance - Secondary (Ohms): 125
- DC Resistance (DCR) - Primary: 1.1kOhm
- DC Resistance (DCR) - Secondary: 28Ohm
- Transformer Type: Data/Voice Coupling
- Frequency Range: 300Hz ~ 100kHz
- Frequency Response: ±2dB
- Voltage - Isolation: 1000VRMS @ 1 Second
- Insertion Loss: -
- Return Loss: -
- Power Level: 10mW
- Operating Temperature: -20°C ~ 85°C
- Approval Agency: -
- Mounting Type: Through Hole
- Size / Dimension: 0.409" L x 0.310" W (10.40mm x 7.87mm)
- Height - Seated (Max): 0.465" (11.80mm)
- Termination Style: PC Pin
