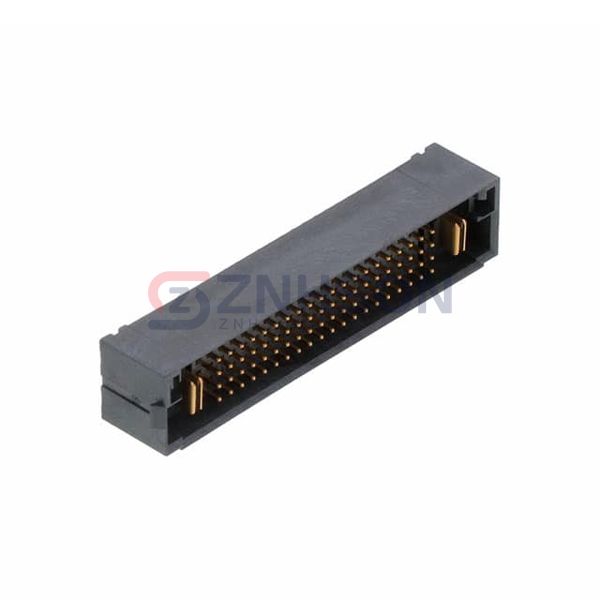

MPTC-01-80-01-6.30-01-L-V
Samtec Inc.
Samtec Inc.
CONN HEADER VERT 82POS
$13.58
Available to order
Reference Price (USD)
1+
$10.03000
10+
$9.59200
100+
$8.06600
500+
$6.75800
1,000+
$5.97320
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The MPTC-01-80-01-6.30-01-L-V Samtec Inc. Rectangular Connectors - Headers, Male Pins deliver precision and reliability for all your connectivity needs. Featuring gold-plated contacts, high-density layouts, and rugged housings, they excel in harsh environments. Perfect for military, automotive, and renewable energy applications. Let us help you find the right connector inquire now!
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Blade; Male Pin
- Pitch - Mating: -
- Number of Positions: 82 (80 + 2 Power)
- Number of Rows: 4
- Row Spacing - Mating: 0.079" (2.00mm)
- Number of Positions Loaded: All
- Style: Board to Board
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Locking Ramp
- Contact Length - Mating: -
- Contact Length - Post: 0.107" (2.71mm)
- Overall Contact Length: -
- Insulation Height: 0.448" (11.38mm)
- Contact Shape: Rectangular, Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 10.0µin (0.25µm)
- Contact Finish - Post: Tin
- Contact Material: Copper Alloy, Phosphor Bronze
- Insulation Material: Liquid Crystal Polymer (LCP)
- Features: Board Guide
- Operating Temperature: -55°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): -
- Voltage Rating: -
