MPTC-02-80-02-6.30-03-L-V
Samtec Inc.
Samtec Inc.

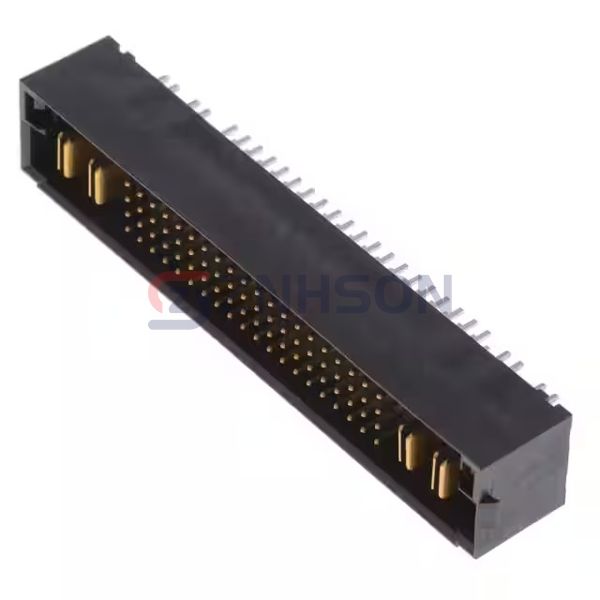

CONN HEADER VERT 84 POS
$15.50
Available to order
Reference Price (USD)
1+
$15.50000
500+
$15.345
1000+
$15.19
1500+
$15.035
2000+
$14.88
2500+
$14.725
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The MPTC-02-80-02-6.30-03-L-V Samtec Inc. Rectangular Connectors - Headers, Male Pins are designed for excellence in every connection. With features like polarized housings, vibration resistance, and RoHS compliance, they meet the highest industry standards. Suitable for LED lighting, HVAC systems, and more. Get yours today submit an inquiry now!
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Blade; Male Pin
- Pitch - Mating: -
- Number of Positions: 84 (80 + 4 Power)
- Number of Rows: 4
- Row Spacing - Mating: 0.079" (2.00mm)
- Number of Positions Loaded: All
- Style: Board to Board
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Locking Ramp
- Contact Length - Mating: -
- Contact Length - Post: 0.107" (2.71mm)
- Overall Contact Length: -
- Insulation Height: 0.448" (11.38mm)
- Contact Shape: Rectangular, Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 10.0µin (0.25µm)
- Contact Finish - Post: Tin
- Contact Material: Copper Alloy, Phosphor Bronze
- Insulation Material: Liquid Crystal Polymer (LCP)
- Features: Board Guide
- Operating Temperature: -55°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): -
- Voltage Rating: -
