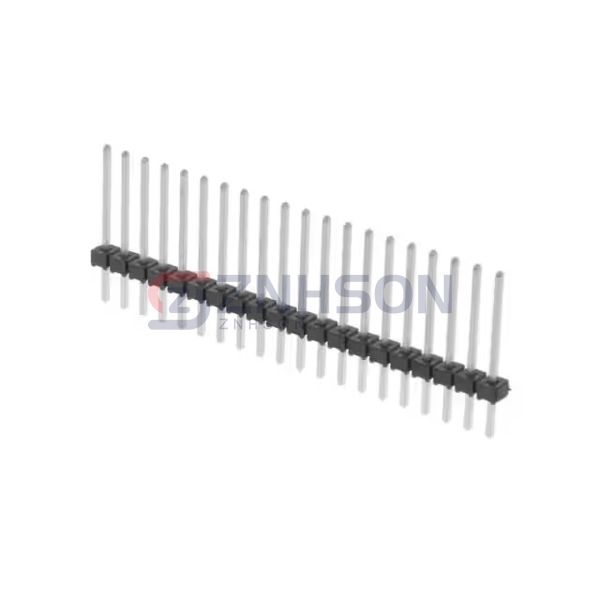

MTMM-120-10-T-S-365
Samtec Inc.
Samtec Inc.
2MM TERMINAL STRIP
$3.57
Available to order
Reference Price (USD)
1+
$2.19000
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The MTMM-120-10-T-S-365 Samtec Inc. Rectangular Connectors - Headers, Male Pins offer unmatched reliability for your electronic assembly needs. With features like corrosion resistance, high-temperature tolerance, and easy mating, these connectors are suited for aerospace, medical devices, and more. Trust Samtec Inc. for top-tier connectivity solutions. Interested? Get in touch today for pricing and availability!
Specifications
- Product Status: Active
- Connector Type: Header, Cuttable
- Contact Type: Male Pin
- Pitch - Mating: 0.079" (2.00mm)
- Number of Positions: 20
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.365" (9.27mm)
- Contact Length - Post: -
- Overall Contact Length: 0.555" (14.10mm)
- Insulation Height: 0.059" (1.50mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Liquid Crystal Polymer (LCP)
- Features: -
- Operating Temperature: -55°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: -
