MUX508ID
Texas Instruments
Texas Instruments
IC MUX 8:1 170 OHM 16SOIC
$3.49
Available to order
Reference Price (USD)
240+
$2.03775
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The Texas Instruments MUX508ID series brings you high-performance Analog Switches, Multiplexers, and Demultiplexers for all your interface needs. Perfect for data loggers, medical imaging, and communication systems, these ICs ensure reliable operation under demanding conditions. Benefit from Texas Instruments's expertise in signal integrity and power efficiency. Reach out now to learn more and place your order with confidence.
Specifications
- Product Status: Active
- Switch Circuit: -
- Multiplexer/Demultiplexer Circuit: 8:1
- Number of Circuits: 1
- On-State Resistance (Max): 170Ohm
- Channel-to-Channel Matching (ΔRon): 2.4Ohm
- Voltage - Supply, Single (V+): 10V ~ 36V
- Voltage - Supply, Dual (V±): ±5V ~ 18V
- Switch Time (Ton, Toff) (Max): 136ns, 75ns
- -3db Bandwidth: -
- Charge Injection: 0.3pC
- Channel Capacitance (CS(off), CD(off)): 2.4pF, 7.5pF
- Current - Leakage (IS(off)) (Max): 1nA
- Crosstalk: -96dB @ 1MHz
- Operating Temperature: -40°C ~ 125°C (TA)
- Mounting Type: Surface Mount
- Package / Case: 16-SOIC (0.154", 3.90mm Width)
- Supplier Device Package: 16-SOIC
Related Products
Harris Corporation
HI1-0305/883
Analog Devices Inc.
ADG904BRU-REEL
Analog Devices Inc.
ADG774BRQ-REEL7
NXP USA Inc.
74HC4353N,652
Rochester Electronics, LLC

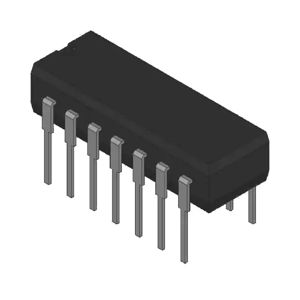

DG303A/BCA
NXP Semiconductors

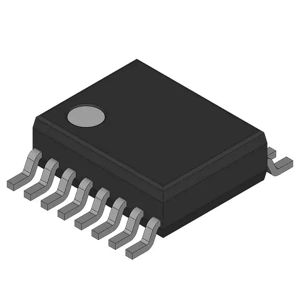

74HCT4052DB,112
NXP USA Inc.

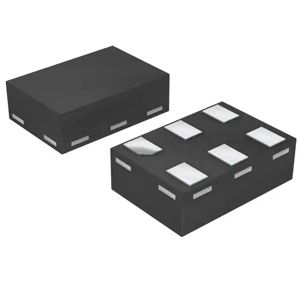

NX3L1T5157GMZ
