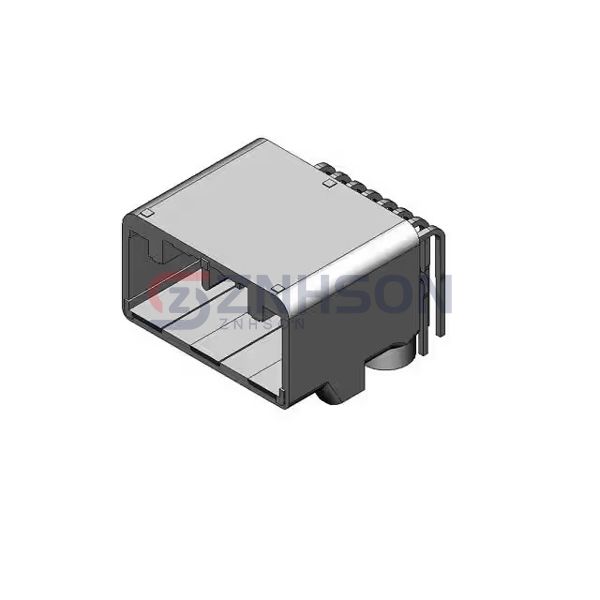

MX84B016NF1
JAE Electronics
JAE Electronics
CONN PIN HEADER 16 POS R/A
$2.04
Available to order
Reference Price (USD)
1+
$2.04000
500+
$2.0196
1000+
$1.9992
1500+
$1.9788
2000+
$1.9584
2500+
$1.938
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The MX84B016NF1 JAE Electronics Rectangular Connectors - Headers, Male Pins offer unmatched reliability for your electronic assembly needs. With features like corrosion resistance, high-temperature tolerance, and easy mating, these connectors are suited for aerospace, medical devices, and more. Trust JAE Electronics for top-tier connectivity solutions. Interested? Get in touch today for pricing and availability!
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.087" (2.20mm)
- Number of Positions: 16
- Number of Rows: 2
- Row Spacing - Mating: 0.118" (3.00mm)
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Locking Ramp
- Contact Length - Mating: 0.303" (7.70mm)
- Contact Length - Post: 0.126" (3.20mm)
- Overall Contact Length: -
- Insulation Height: 0.626" (15.90mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Syndiotactic Polystyrene (SPS), Glass Filled
- Features: Mounting Flange
- Operating Temperature: -40°C ~ 85°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: -
Related Products
Samtec Inc.
TSM-105-01-S-DV-009-P
Sullins Connector Solutions
GRPB361VWVN-RC
Mill-Max Manufacturing Corp.
350-10-135-00-001000
Samtec Inc.
TMM-125-01-S-D-SM-P-TR
Samtec Inc.
FTMH-136-03-L-DV-ES
Amphenol ICC (FCI)

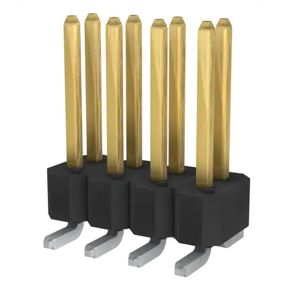

95278-102B08LF
