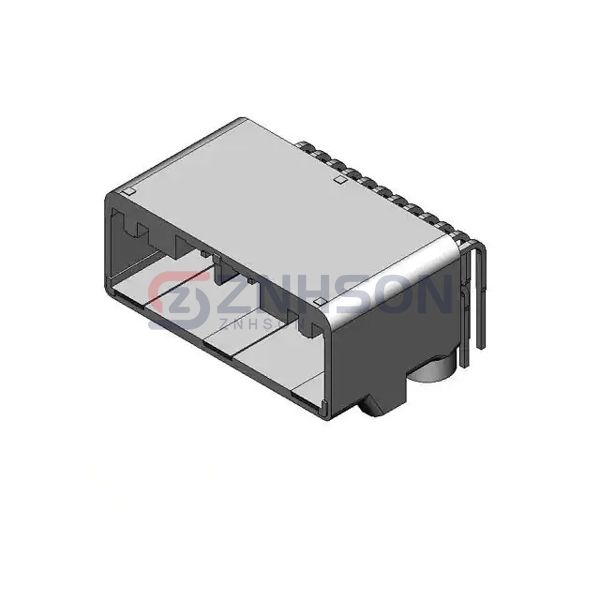

MX84B024NF1
JAE Electronics
JAE Electronics
CONN HEADER R/A 24POS 2.2MM
$4.67
Available to order
Reference Price (USD)
1+
$4.67000
500+
$4.6233
1000+
$4.5766
1500+
$4.5299
2000+
$4.4832
2500+
$4.4365
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The MX84B024NF1 JAE Electronics Rectangular Connectors - Headers, Male Pins are the perfect choice for high-performance electronic connections. Designed for durability and efficiency, they support a wide range of applications, from automotive to IoT devices. Experience the JAE Electronics difference today. Contact us for more details and a customized solution!
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.087" (2.20mm)
- Number of Positions: 24
- Number of Rows: 2
- Row Spacing - Mating: 0.118" (3.00mm)
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Locking Ramp
- Contact Length - Mating: 0.303" (7.70mm)
- Contact Length - Post: 0.126" (3.20mm)
- Overall Contact Length: -
- Insulation Height: 0.626" (15.90mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Syndiotactic Polystyrene (SPS), Glass Filled
- Features: Mounting Flange
- Operating Temperature: -40°C ~ 85°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: -
Related Products
3M
929834-05-09
Samtec Inc.
TSW-119-08-L-S-RA
Samtec Inc.
FTE-155-01-G-DH
TE Connectivity AMP Connectors
1-147278-2
Molex
0015916163
Preci-Dip
350-80-117-00-013101
TE Connectivity AMP Connectors
3-1445087-2
Amphenol ICC (FCI)
20021221-00060T4LF

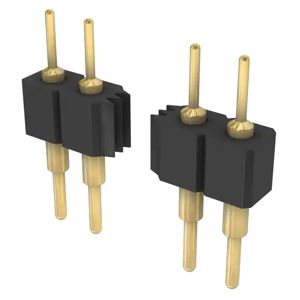

Preci-Dip
