N2514-5002-RB

Manufacturer

Description:

CONN HEADER R/A 14POS 2.54MM

Datasheet:

N2514-5002-RB Datasheet

$2.81

Available to order

Reference Price (USD)

$2.07000

10+

$1.88200

100+

$1.61280

500+

$1.34400

1,000+

$1.15200

5,000+

$1.02144

10,000+

$0.99840

Exquisite packaging

Discount

TT / Paypal / Credit Card / Western Union / Money Gram

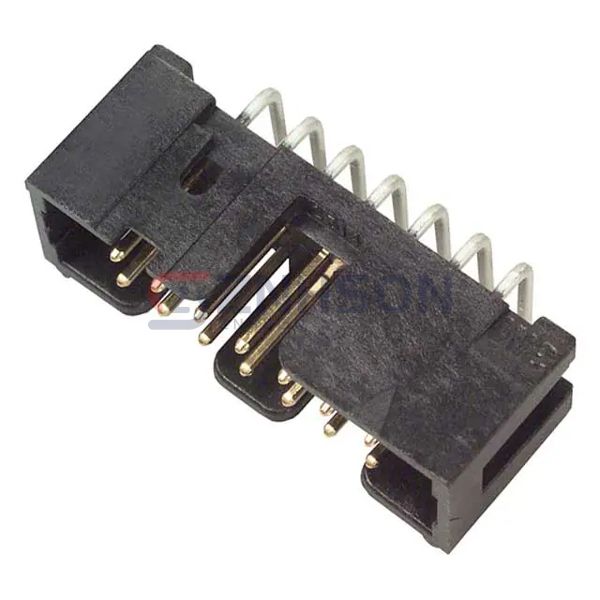

The N2514-5002-RB 3M Rectangular Connectors - Headers, Male Pins are the perfect choice for high-performance electronic connections. Designed for durability and efficiency, they support a wide range of applications, from automotive to IoT devices. Experience the 3M difference today. Contact us for more details and a customized solution!

Specifications

Product Status: Active
Connector Type: Header
Contact Type: Male Pin
Pitch - Mating: 0.100" (2.54mm)
Number of Positions: 14
Number of Rows: 2
Row Spacing - Mating: 0.100" (2.54mm)
Number of Positions Loaded: All
Style: Board to Board or Cable
Shrouding: Shrouded - 4 Wall
Mounting Type: Through Hole, Right Angle
Termination: Solder
Fastening Type: Push-Pull
Contact Length - Mating: 0.243" (6.17mm)
Contact Length - Post: 0.112" (2.84mm)
Overall Contact Length: -
Insulation Height: 0.338" (8.59mm)
Contact Shape: Square
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 30.0µin (0.76µm)
Contact Finish - Post: Tin
Contact Material: Copper Alloy
Insulation Material: Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled
Features: Keying Slot
Operating Temperature: -55°C ~ 105°C
Ingress Protection: -
Material Flammability Rating: UL94 V-0
Insulation Color: Black
Current Rating (Amps): 1.75A
Voltage Rating: -
