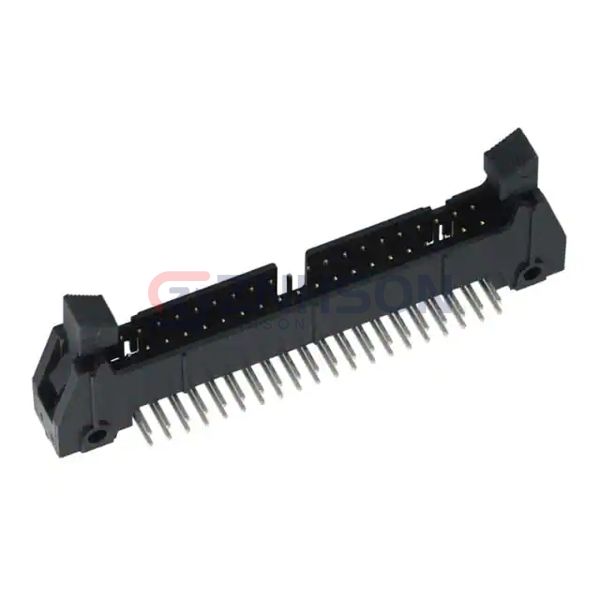

N3432-5202RB

Manufacturer

Description:

CONN HEADER R/A 40POS 2.54MM

Datasheet:

N3432-5202RB Datasheet

$6.46

Available to order

Reference Price (USD)

$4.86000

10+

$4.66600

100+

$3.88800

500+

$3.30480

1,000+

$2.81880

Exquisite packaging

Discount

TT / Paypal / Credit Card / Western Union / Money Gram

Ensure seamless connectivity with N3432-5202RB 3M Rectangular Connectors - Headers, Male Pins. These connectors are built to last, featuring robust contacts, compact design, and versatile mounting options. Ideal for data communication, power supply, and control systems. Don't compromise on quality reach out to us now for your connector requirements!

Specifications

Product Status: Active
Connector Type: Header
Contact Type: Male Pin
Pitch - Mating: 0.100" (2.54mm)
Number of Positions: 40
Number of Rows: 2
Row Spacing - Mating: 0.100" (2.54mm)
Number of Positions Loaded: All
Style: Board to Board or Cable
Shrouding: Shrouded - 4 Wall
Mounting Type: Through Hole, Right Angle
Termination: Solder
Fastening Type: Latch Lock/Eject Hooks, Short
Contact Length - Mating: 0.240" (6.10mm)
Contact Length - Post: 0.112" (2.84mm)
Overall Contact Length: -
Insulation Height: 0.340" (8.64mm)
Contact Shape: Square
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 30.0µin (0.76µm)
Contact Finish - Post: Tin
Contact Material: Copper Alloy
Insulation Material: Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled
Features: Keying Slot, Mounting Flange
Operating Temperature: -55°C ~ 105°C
Ingress Protection: -
Material Flammability Rating: UL94 V-0
Insulation Color: Black
Current Rating (Amps): 1.75A
Voltage Rating: -
