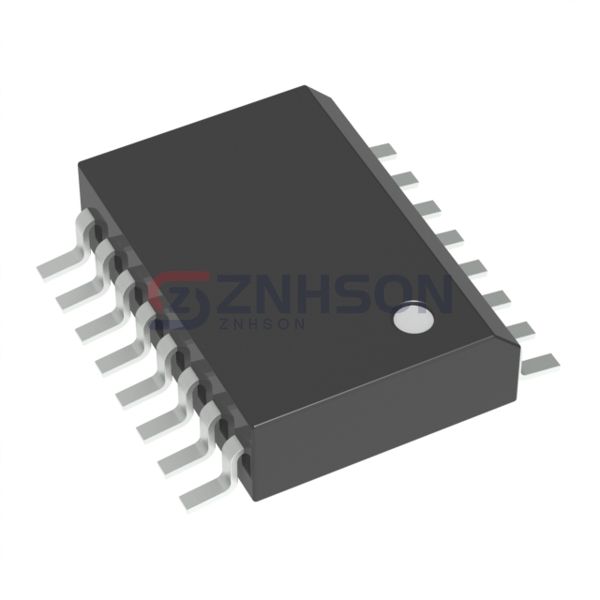

NCD57252DWR2G
onsemi
onsemi
ISOLATED DUAL-CHANNEL IGBT/MOSFE
$5.06
Available to order
Reference Price (USD)
1+
$5.06000
500+
$5.0094
1000+
$4.9588
1500+
$4.9082
2000+
$4.8576
2500+
$4.807
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Elevate your designs with onsemi NCD57252DWR2G Gate Driver Isolators, offering top-tier isolation and signal integrity. These isolators are equipped with high noise rejection, fast switching speeds, and compliance with international safety standards. Suitable for traction inverters, test equipment, and more, they ensure peak performance. Start your order process contact us today!
Specifications
- Product Status: Active
- Technology: Capacitive Coupling
- Number of Channels: 2
- Voltage - Isolation: 5000Vrms
- Common Mode Transient Immunity (Min): 100kV/µs
- Propagation Delay tpLH / tpHL (Max): 80ns, 80ns
- Pulse Width Distortion (Max): 10ns
- Rise / Fall Time (Typ): 12ns, 10ns
- Current - Output High, Low: 6.5A, 6.5A
- Current - Peak Output: 6.5A
- Voltage - Forward (Vf) (Typ): -
- Current - DC Forward (If) (Max): -
- Voltage - Output Supply: 32V
- Operating Temperature: -40°C ~ 125°C
- Mounting Type: Surface Mount
- Package / Case: 16-SOIC (0.295", 7.50mm Width)
- Supplier Device Package: 16-SOIC
- Approval Agency: VDE
