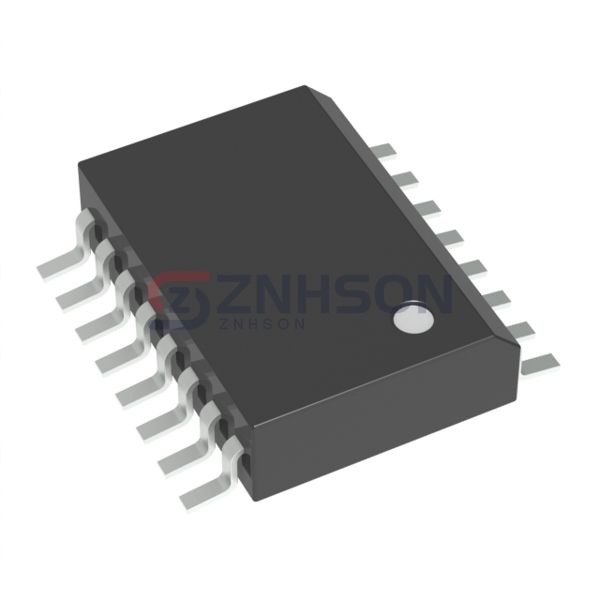

NCV57001DWR2G
onsemi
onsemi
IC IGBT GATE DRIVER
$5.59
Available to order
Reference Price (USD)
1+
$5.59000
500+
$5.5341
1000+
$5.4782
1500+
$5.4223
2000+
$5.3664
2500+
$5.3105
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Experience next-level isolation with onsemi NCV57001DWR2G Gate Driver Isolators, designed for precision and reliability. Featuring fast response times, high dielectric strength, and ESD protection, these isolators excel in motor control, power supplies, and telecom infrastructure. Partner with us for tailored solutions send your inquiry now!
Specifications
- Product Status: Active
- Technology: Capacitive Coupling
- Number of Channels: 1
- Voltage - Isolation: 1200Vrms
- Common Mode Transient Immunity (Min): 100kV/µs
- Propagation Delay tpLH / tpHL (Max): 90ns, 90ns
- Pulse Width Distortion (Max): -
- Rise / Fall Time (Typ): 10ns, 15ns
- Current - Output High, Low: 7.8A, 7.1A
- Current - Peak Output: -
- Voltage - Forward (Vf) (Typ): -
- Current - DC Forward (If) (Max): -
- Voltage - Output Supply: 0V ~ 24V
- Operating Temperature: -40°C ~ 125°C (TA)
- Mounting Type: Surface Mount
- Package / Case: 16-SOIC (0.295", 7.50mm Width)
- Supplier Device Package: 16-SOIC
- Approval Agency: UL, VDE
