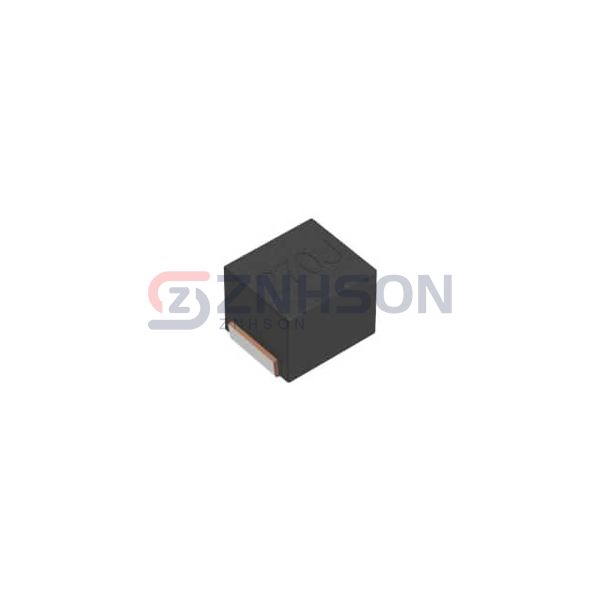

NLV25T-R56J-PFD
TDK Corporation
TDK Corporation
FIXED IND 560NH 325MA 750MOHM SM
$0.13
Available to order
Reference Price (USD)
2,000+
$0.11646
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your projects with NLV25T-R56J-PFD Fixed Inductors by TDK Corporation, engineered for optimal efficiency and durability. With features like high Q factor, minimal core losses, and compact designs, these inductors are perfect for telecommunications, automotive systems, and energy management. NLV25T-R56J-PFD ensures superior performance in demanding environments. Ready to enhance your designs? Request a sample or inquire about pricing now!
Specifications
- Product Status: Not For New Designs
- Type: Drum Core, Wirewound
- Material - Core: Ferrite
- Inductance: 560 nH
- Tolerance: ±5%
- Current Rating (Amps): 325 mA
- Current - Saturation (Isat): -
- Shielding: Unshielded
- DC Resistance (DCR): 750mOhm Max
- Q @ Freq: 30 @ 25.2MHz
- Frequency - Self Resonant: 325MHz
- Ratings: AEC-Q200
- Operating Temperature: -40°C ~ 105°C
- Inductance Frequency - Test: 25.2 MHz
- Features: -
- Mounting Type: Surface Mount
- Package / Case: 1008 (2520 Metric)
- Supplier Device Package: 1008 (2520 Metric)
- Size / Dimension: 0.098" L x 0.079" W (2.50mm x 2.00mm)
- Height - Seated (Max): 0.075" (1.90mm)
