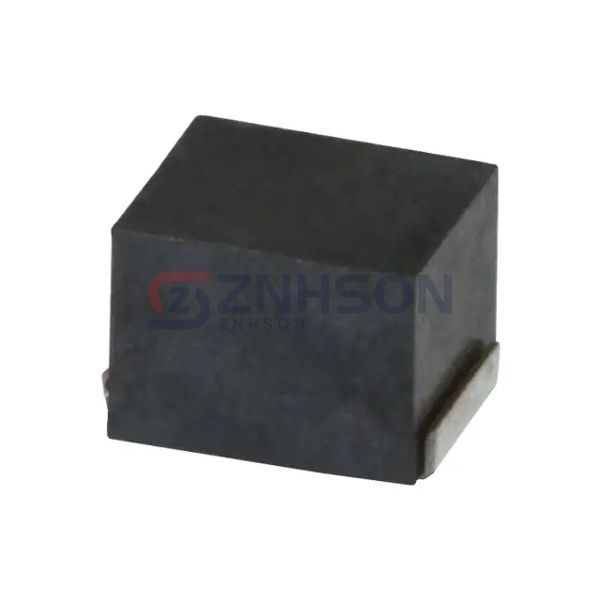

NLV32T-2R2J-PFD
TDK Corporation
TDK Corporation
FIXED IND 2.2UH 320MA 1 OHM SMD
$0.13
Available to order
Reference Price (USD)
2,000+
$0.11646
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Boost your circuit efficiency with NLV32T-2R2J-PFD Fixed Inductors from TDK Corporation, a trusted name in electronic components. Designed with high-frequency capabilities, minimal eddy current losses, and excellent shielding, these inductors are perfect for wireless charging, LED lighting, and automation systems. NLV32T-2R2J-PFD ensures peak performance. Looking for tailored solutions? Contact us for expert advice!
Specifications
- Product Status: Not For New Designs
- Type: Drum Core, Wirewound
- Material - Core: Ferrite
- Inductance: 2.2 µH
- Tolerance: ±5%
- Current Rating (Amps): 320 mA
- Current - Saturation (Isat): -
- Shielding: Unshielded
- DC Resistance (DCR): 1Ohm Max
- Q @ Freq: 30 @ 7.96MHz
- Frequency - Self Resonant: 75MHz
- Ratings: AEC-Q200
- Operating Temperature: -40°C ~ 105°C
- Inductance Frequency - Test: 7.96 MHz
- Features: -
- Mounting Type: Surface Mount
- Package / Case: 1210 (3225 Metric)
- Supplier Device Package: 1210 (3225 Metric)
- Size / Dimension: 0.126" L x 0.098" W (3.20mm x 2.50mm)
- Height - Seated (Max): 0.094" (2.40mm)
Related Products
Murata Electronics
LQG15HZ6N8J02D
Vishay Dale
ISC1812ET220K
Murata Electronics
LQP02TN5N1S02D
Venkel
LMCI1608-22NJT
Bourns Inc.
77F120K-TR-RC
COILCRAFT
0402DC-91NXJRW
TDK Corporation
MLG0603P4N7JT000
Taiyo Yuden

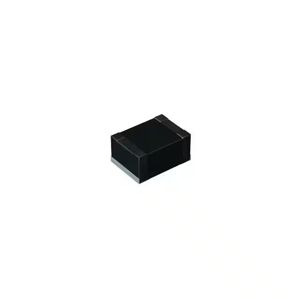

LSQPB201210T680M
TDK Corporation

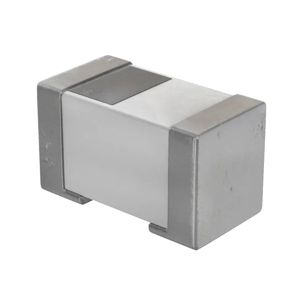

MHQ0603P5N6HT000
