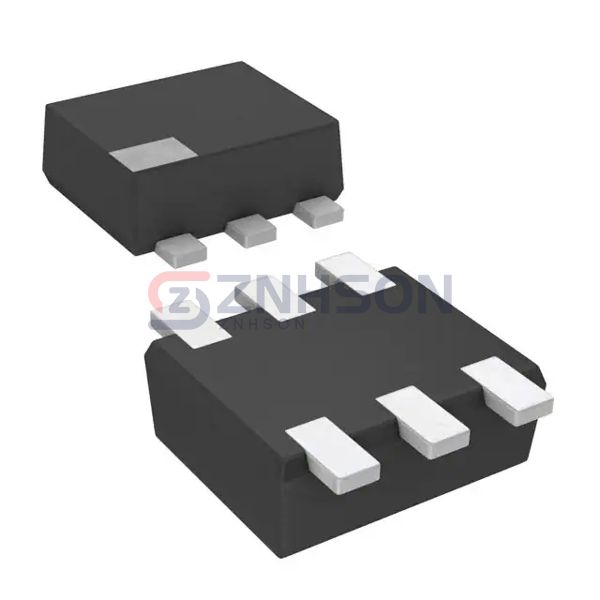

NP0G3D200A
Panasonic Electronic Components
Panasonic Electronic Components
TRANS PREBIAS NPN/PNP SSSMINI6
$0.44
Available to order
Reference Price (USD)
1+
$0.44000
500+
$0.4356
1000+
$0.4312
1500+
$0.4268
2000+
$0.4224
2500+
$0.418
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Panasonic Electronic Components's NP0G3D200A represents the next generation of Pre-Biased Bipolar Transistor Arrays, combining efficiency with compact design. These surface-mount compatible components feature integrated bias networks that reduce part count while improving system reliability. Ideal applications encompass power management, sensor interfaces, and digital circuit amplification in medical equipment, robotics, and smart home systems. Notable advantages include consistent hFE matching, reduced board space requirements, and simplified inventory management. As a leading supplier of discrete semiconductors, Panasonic Electronic Components guarantees quality and performance. Get competitive quotes and lead times inquire about NP0G3D200A now!
Specifications
- Product Status: Obsolete
- Transistor Type: 1 NPN, 1 PNP - Pre-Biased (Dual)
- Current - Collector (Ic) (Max): 80mA
- Voltage - Collector Emitter Breakdown (Max): 50V
- Resistor - Base (R1): 4.7kOhms, 22kOhms
- Resistor - Emitter Base (R2): 4.7kOhms, 47kOhms
- DC Current Gain (hFE) (Min) @ Ic, Vce: 20 @ 5mA, 10V / 80 @ 5mA, 10V
- Vce Saturation (Max) @ Ib, Ic: 250mV @ 300µA, 10mA
- Current - Collector Cutoff (Max): 500nA
- Frequency - Transition: 150MHz, 80MHz
- Power - Max: 125mW
- Mounting Type: Surface Mount
- Package / Case: SOT-963
- Supplier Device Package: SSSMini6-F1
